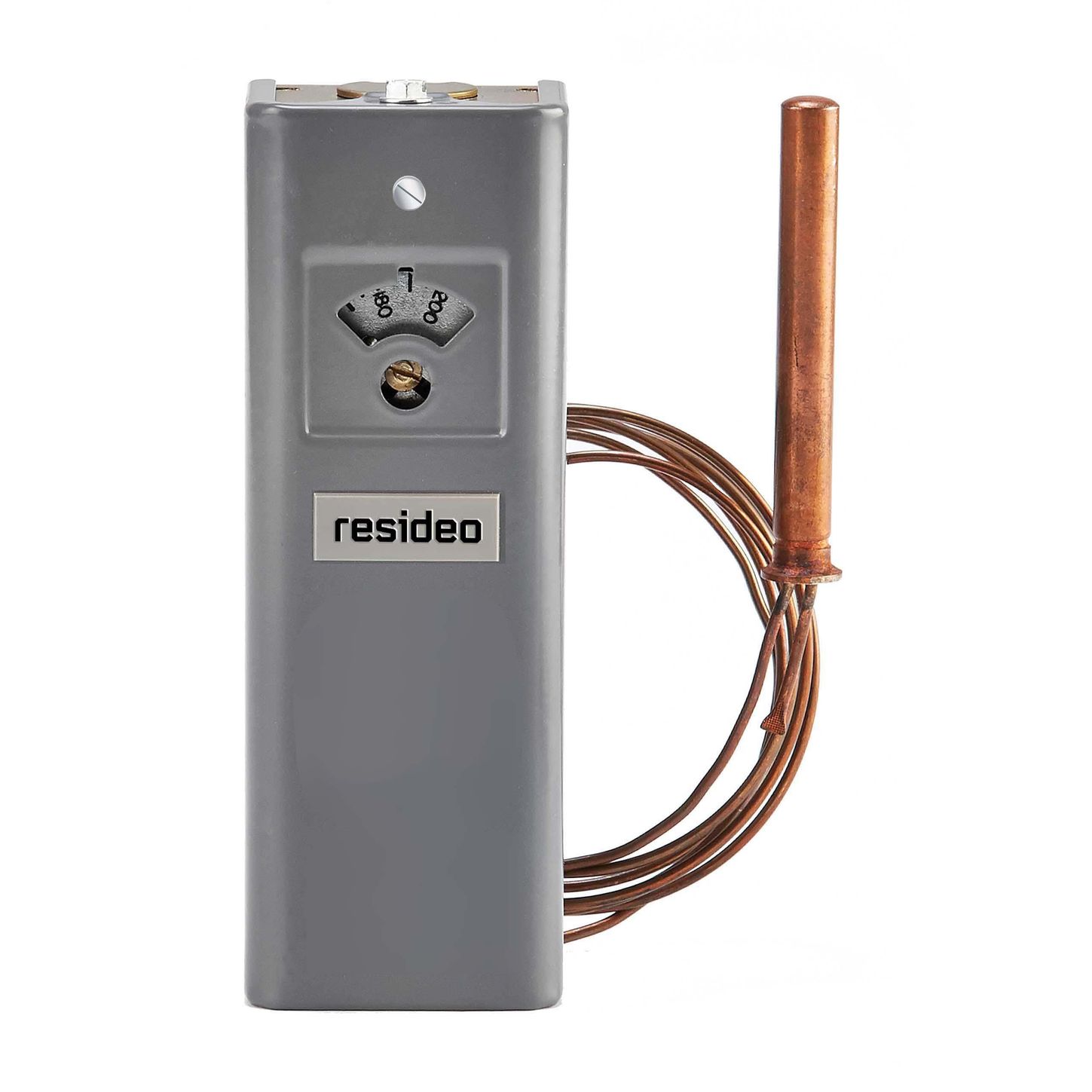

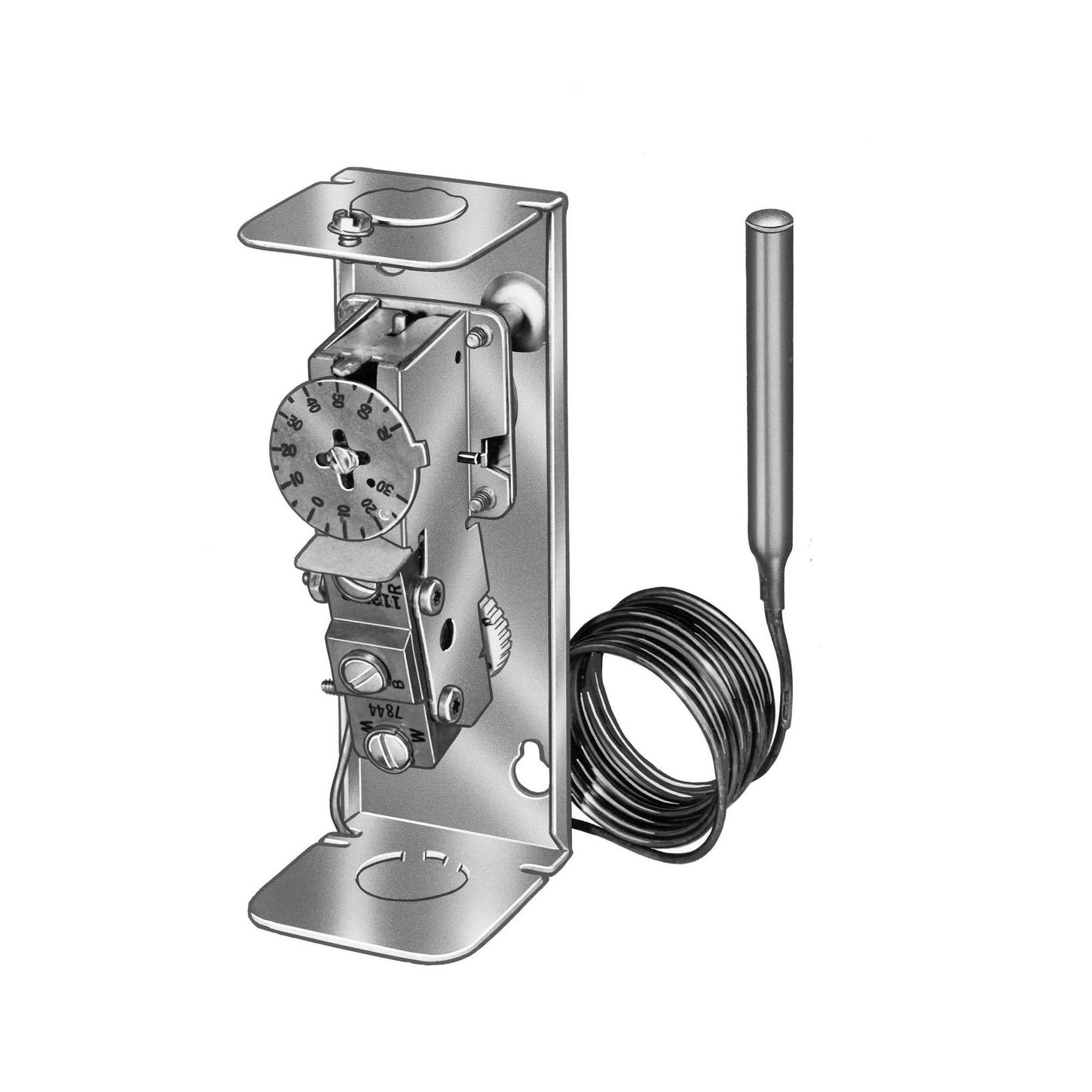

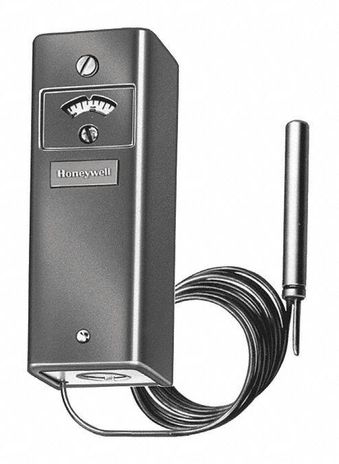

Resideo L4008A1130

High or Low Limit Aquastat, Range 130-270 °F, adjustable differential, SPST, contacts break on temperature rise, remote bulb, 120 in capillary length

• Description: High or Low limit Aquastat Controller with 130 F to 270 F operating temperature, 5 F to 30 F adj. Differential and 10 ft. capillary
• Application: High or Low limit
• Bulb Size (in.): ⅜ in. x 2 ⅞ in. copper
• Bulb Size (mm): 10 mm x 73 mm copper
• Capillary Length (in.): 120 in.
• Switching Action: SPST, contacts break on temperature rise.
• Operating Temperature Range (F): 130 F to 270 F
• Operating Temperature Range (C): 54 C to 132 C
• Electrical Ratings (millivolt): 0.25 A @ 0.25 to 12 Vdc
• Electrical Ratings (AFL): 8A @ 120 Vac
• Electrical Ratings (AFL): 5.1A @ 240 Vac
• Electrical Ratings (ALR): 48A @ 120 Vac
• Electrical Ratings (ALR): 30.6A @ 240 Vac
• Differential Temperature (F): 5 F to 30 F adj.
• Differential Temperature (C): 3 C to 17 C adj.
• Maximum Ambient Temperature (F): 150 F
• Maximum Ambient Temperature (C): 66 C
• Case Dimensions (in.): 5 ⅝ in. high x 2 in. wide x 2 ⅛ in. deep
• Case Dimensions (mm): 143 mm high x 51 mm wide x 54 mm deep
• Mounting: Horizontal or Vertical
• Approvals, Underwriters Laboratories Inc UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
• Approvals, Canadian Standards Association Certified: File No. LR95329-1
• Includes: 10 ft (3.04 m) capillary; factory-set stop at 200 F (93 C).
