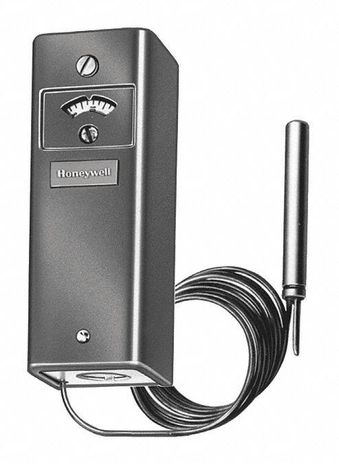

Resideo L4008B1013

Circulator Aquastat, Range 100-240 °F, adjustable differential, SPST, contacts break on temperature rise, remote bulb, 66 in capillary length

For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.

Features

• Remote temperature sensing element detects and responds rapidly to temperature changes.
• Totally enclosed Micro Switch+ snap-acting switch.
• Visible control point scale and external adjustment screw permit easy setting.
• Horizontal or vertical mounting of the remote element into boiler, tank, or other container.
• Case mounts to a vertical surface.

Product Specifications

Description : Circulator Aquastat Controller with 100 F to 240 F operating temperature, 5 F fixed Differential and 5 ½ ft. capillary

Application : Circulator

Bulb Size (in.) : ⅜ in. x 2 ⅞ in. copper

Bulb Size (mm) : 10 mm x 73 mm copper

Capillary Length (in.) : 66 in.

Switching Action : SPST, contacts make on temperature rise.

Operating Temperature Range (F) : 100 F to 240 F

Operating Temperature Range (C) : 38 C to 116 C

Electrical Ratings (millivolt) : 0.25 A @ 0.25 to 12 Vdc

Electrical Ratings (AFL) : 8A @ 120 Vac

Electrical Ratings (AFL) : 5.1A @ 240 Vac

Electrical Ratings (ALR) : 48A @ 120 Vac

Electrical Ratings (ALR) : 30.6A @ 240 Vac

Differential Temperature (F) : 5 F to 30 F adj.

Differential Temperature (C) : 3 C to 17 C adj.

Maximum Ambient Temperature (F) : 150 F

Maximum Ambient Temperature (C) : 66 C

Case Dimensions (in.) : 5 ⅝ in. high x 2 in. wide x 2 ⅛ in. deep

Case Dimensions (mm) : 143 mm high x 51 mm wide x 54 mm deep

Mounting : Horizontal or Vertical

Approvals, Underwriters Laboratories Inc : UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2

Approvals, Canadian Standards Association : Certified: File No. LR95329-1

Includes : 5 ½ ft (1.7 m) capillary.
