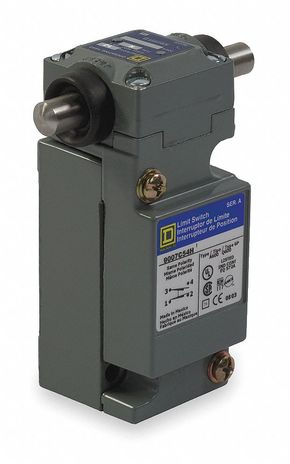

Square D 9007C54H

Name: Square D 9007C54H
Brand: Square D
SKU: CS703963
Availability: OutOfStock

SKU: CS703963MPN: 9007C54HUPC/EAN: 785901849889

Limit switch, 9007, 600 V 10amp c +options

Product Details

Heavy Duty Limit Switch Actuator Style - Limit Switch Plunger Actuator Location - Limit Switch Side AC Contact Rating - Limit Switch 10A @ 600V DC Contact Rating - Limit Switch 10A @ 600V Contact Form- Switches 1NC/1NO Actuator Length - Limit Switch 3.12 in Body Height - Limit Switch 2.5 in Body Width - Limit Switch 0.83 in Body Depth - Limit Switch 1.14 in Boot Sealed Actuator - Limit Switch No Body Style - Limit Switch Miniature NEMA Rating 1 12 13 2 4 6 6P

Attributes

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Storage	-20-185 °F
Body Material	zinc
Body Type	plug-in
Contact Form	Form Z
Contact Operation	snap action
Contacts Material	silver contacts
Contacts Type And Composition	NC-NO
Device Short Name	9007C
Electrical Durability	1000000 cycles
Environmental Characteristic	standard environment
Fixing Mode	by the body
Function Available	-
Head Material	zinc
Head Type	plunger head
Material	metal
Mechanical Durability	10000000 cycles
Movement Of Operating Head	linear
Number Of Poles	1
Positive Opening	without
Product Or Component Type	limit switch
Product Specific Application	standard box
Protective Treatment	epoxy powder coat
Range Of Product	9007
Sale Per Indivisible Quantity	1.0000
Series Name	heavy duty
Switch Actuation	on end
Switch Function	SPDT-DB
Terminals Description Iso N 1	(1-2)NC# #(3-4)NO
