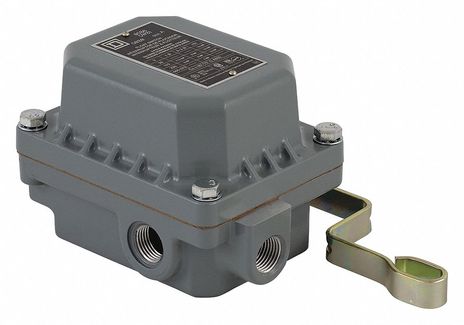

Telemecanique 9036DR31

Name: Telemecanique 9036DR31
Brand: Telemecanique
SKU: CS771998
Price: 495.44 USD
Availability: InStock

SKU: CS771998MPN: 9036DR31

Lqd Lvl Swch Vrtcl Opn Tnk Close On Rise

$495.44

Unit

1 Unit Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Product Details

Open Liquid Level Switch 10 A Amps Contact Form DPST VA Rating 460V AC Float Travel 1 ¼ in NEMA Rating 7 9 Operating Temp Range -22 Degrees to 220 Degrees F Switch Function Close On Rise Overall Length 7.1 in Float Material Stainless Steel Float Length 7.0 in Float Dia 7.0 in Height 4.27 in Width 2.53 in Max Current 600 A Max Voltage 575 HP @ 1 Phase - 120V 2 hp HP @ 1 Phase - 240V 3 hp HP @ 3 Phase - 240V 5 hp Open Tank Mounting Body Material Steel

Attributes

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	open tank general purpose
Sena Device Mounting	pedestal
Sena Device Short Name	9036D
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	cast aluminium
Sena Factory Modification	without
Sena Float Position	any
Sena Float Rod Angle	vertical
Sena Kit Composition	rod and float are to be choosen in accessories# #float switch
Sena Local Signalling	without
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	CSA file LR26817# #UL listed file E12443
Sena Product Destination	for open tank or sump
Sena Product Or Component Type	float switch
Sena Product Specific Application	liquid level control
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	CE# #UL 508
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
