Telemecanique 9037HG33RZ20

Name: Telemecanique 9037HG33RZ20
Brand: Telemecanique
SKU: CS4810310
Price: 280.15 USD
Availability: OutOfStock

SKU: CS4810310MPN: 9037HG33RZ20UPC/EAN: 785901508229

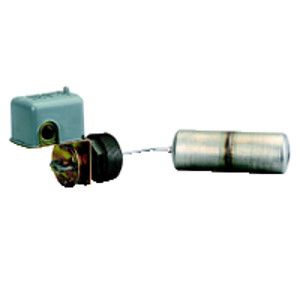

Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NO DPST DB contacts

Product Details

Float Switch

Device Mounting: Screw-in bushing* Cable Entry Number: 3 knock-outs for ½ in. conduit UL 508* Contacts Type and Composition: 2 NO snap action DPST-DB Form XX* Motor Power kW: 1.5 kW 2 HP at 115V AC 1 Phase* Electrical Connection: Screw clamp terminals 10 AWG* Float Position: Right* Float Rod Angle: 45 deg.* Local Signaling: with external pointer* Operating Position: Vertical* Rated Insulation Voltage: 575V UL 508* Degree of Protection: NEMA 1 UL 50

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	closed tank
Sena Device Mounting	screw-in bushing
Sena Device Short Name	9037H
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	polypropylene or equivalent
Sena Factory Modification	without
Sena Float Position	right
Sena Float Rod Angle	45°
Sena Kit Composition	float switch# #float# #rod
Sena Local Signalling	with external pointer
Sena Materials In Contact With Fluid	stainlesss steel 304# #cast iron# #yellow brass# #stainless steel 316# #viton
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	CSA file LR25490# #UL listed file E12158
Sena Product Destination	for closed tank
Sena Product Or Component Type	float switch
Sena Product Specific Application	liquid level control
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	CE# #UL 508
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
