Telemecanique 9037HW36

Name: Telemecanique 9037HW36
Brand: Telemecanique
SKU: CS1652341
Availability: OutOfStock

SKU: CS1652341MPN: 9037HW36UPC/EAN: 785901737322

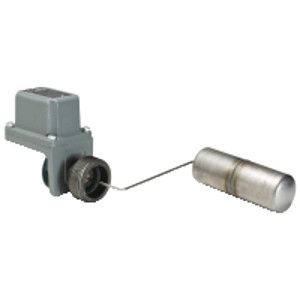

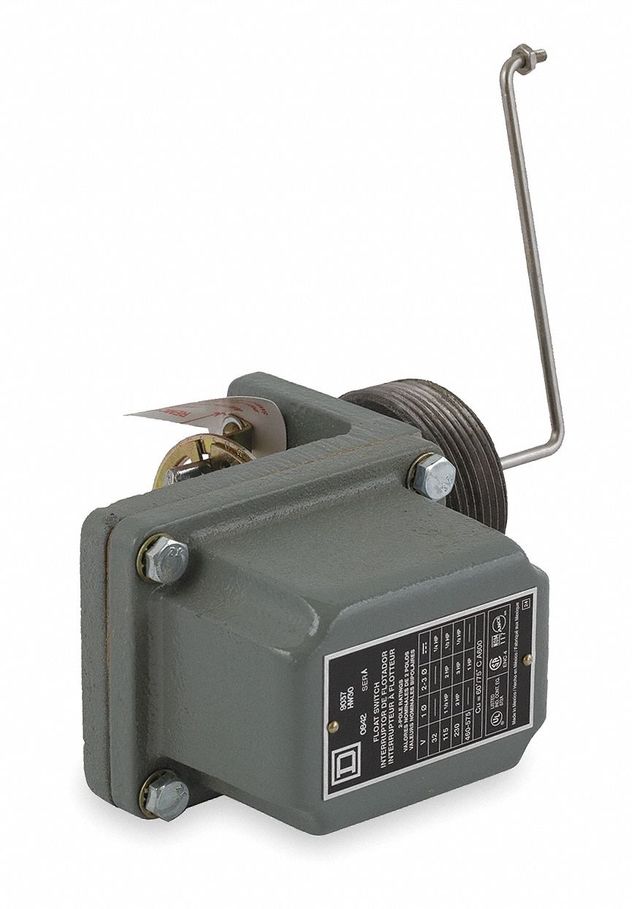

Float switch, Square D Pumptrol, closed tank, NEMA 4, screw in bushing, 2 NC DPST DB contacts

Product Details

Float Switch-closed tank - NEMA 4 - screw-in bushing - 2 NC DPST-DB contacts

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	closed tank
Sena Device Mounting	screw-in bushing
Sena Device Short Name	9037H
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	cast aluminium
Sena Factory Modification	without
Sena Float Position	left
Sena Float Rod Angle	90° (offset)
Sena Kit Composition	float# #float switch# #rod
Sena Local Signalling	with external pointer
Sena Materials In Contact With Fluid	yellow brass# #stainless steel 316# #cast iron# #nitrile (Buna-N) or equivalent rubber# #stainlesss steel 304
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	CSA file LR25490# #UL listed file E12158
Sena Product Destination	for closed tank
Sena Product Or Component Type	float switch
Sena Product Specific Application	liquid level control
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	UL 508# #CE
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
