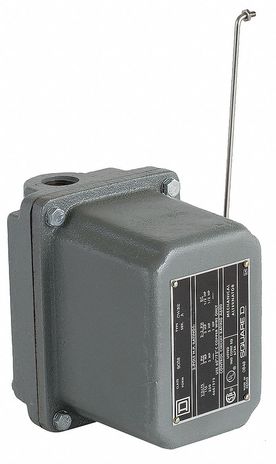

Telemecanique 9038CW32

Name: Telemecanique 9038CW32
Brand: Telemecanique
SKU: CS408878
Availability: OutOfStock

SKU: CS408878MPN: 9038CW32

Alternator Lqd Lvl Swch 2-½ MNPT

Product Details

Alternator Tank Liquid Level Switch Switch Function Close On Rise Side Mounting Float Position Left Float Rod Angle 90 Degrees Float Travel 6 ½ in Tank Connection Size 2-½ in MNPT NEMA Rating 4 Contact Form DPST Operating Temp Range -22 Degrees to 200 Degrees F Max Pressure 50 psi Overall Length 17.81 in Float Material Stainless Steel Float Length 7.0 in Float Dia 2.5 in Stem Material Stainless Steel Stem Length 4.0 in Height 5.94 in Width 6.84 in Max Voltage 475 V

Attributes

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	closed tank with bushing
Sena Device Mounting	screw-in bushing
Sena Device Short Name	9038C
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	cast aluminium
Sena Factory Modification	without
Sena Float Position	left
Sena Float Rod Angle	90° (offset)
Sena Kit Composition	float switch# #float# #rod
Sena Local Signalling	with external pointer
Sena Materials In Contact With Fluid	nitrile (Buna-N) or equivalent rubber# #cast iron# #stainlesss steel 304# #yellow brass# #stainless steel 316
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	CSA file LR25490# #UL listed file E12158
Sena Product Destination	for closed tank
Sena Product Or Component Type	mechanical alternator
Sena Product Specific Application	mechanically alternating the operation of two pumps or motors
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	CE# #UL 508
Sena Terminal Block Type	8 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
