Telemecanique 9037HG36LZ20

Name: Telemecanique 9037HG36LZ20
Brand: Telemecanique
SKU: CS1652311
Availability: OutOfStock

SKU: CS1652311MPN: 9037HG36LZ20UPC/EAN: 785901165248

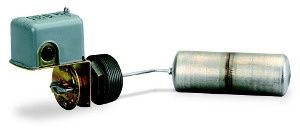

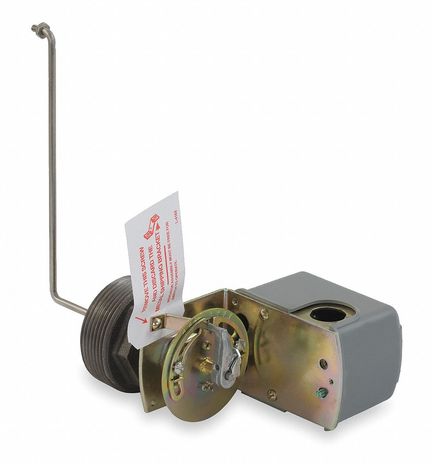

Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NC DPST DB contacts

Product Details

Float Switch:

Type: H* Enclosure Rating: NEMA 1* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Flange* 575VAC* 2 Normally Open* 2-Pole* Float Position: Left* Float Movement: 2 to 5 Inches (Adjustable)* Float Rod Angle: 90 Degrees

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	closed tank
Sena Device Mounting	screw-in bushing
Sena Device Short Name	9037H
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	polypropylene or equivalent
Sena Factory Modification	omit float
Sena Float Position	left
Sena Float Rod Angle	90°
Sena Kit Composition	float switch# #float# #rod
Sena Local Signalling	with external pointer
Sena Materials In Contact With Fluid	stainlesss steel 304# #viton# #stainless steel 316# #cast iron# #yellow brass
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	UL listed file E12158# #CSA file LR25490
Sena Product Destination	for closed tank
Sena Product Or Component Type	float switch
Sena Product Specific Application	liquid level control
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	CE# #UL 508
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
