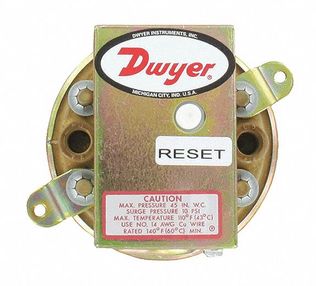

Dwyer 1900-5-MR
SKU: CS682568MPN: 1900-5-MRAlternate Part #: 114028-05
1900-5-MR
$135.41
Unit5+ Units Available at Factory - Ships Same/Next Business Day
Product Details
Differential pressure switch, range 1.40-5.5” w.c., approx. deadband @ min. set point 0.30, approx. deadband @ max. set point 0.30, with manual reset option.
Attributes
| Commodity Code | 2600 |
| Compliance | CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals. |
| Electrical Connection | 3 screw type, common, normally open and normally closed. |
| Electrical Rating | 15 A @ 120-480 VAC, 60 Hz. Resistive ⅛ HP @ 125 VAC, ¼ HP @ 250 VAC, 60 Hz. Derate to 10 A for operation at high cycle rates. |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Pressure Limit | 45” w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge. |
| Process Connection | ⅛” female NPT. |
| Repeatability | ±3%. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Screw type inside conduit enclosure. |
| Switch Type | Single-pole double-throw (SPDT). |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS682568 |
|---|---|
| MPN | 1900-5-MR |
| Alternate Part # | 114028-05 |
