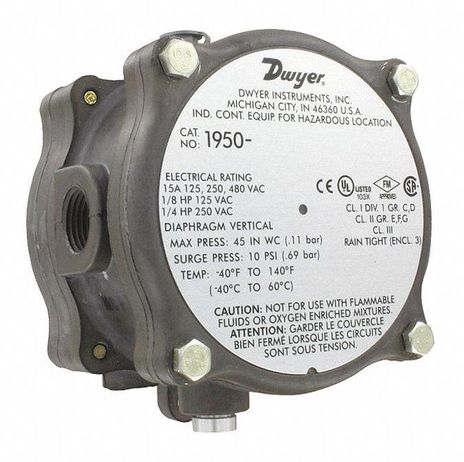

Dwyer 1950-5-2F

Name: Dwyer 1950-5-2F
Brand: Dwyer
SKU: CS133744
Price: 377.71 USD
Availability: OutOfStock

SKU: CS133744MPN: 1950-5-2FAlternate Part #: 114037-04

1950-5-2F PR SW 1.4-5.5 INWC

$377.71

Unit

Available on backorder

Quantity

remove

add

Product Details

Differential pressure switch, range 1.4-5.5” w.c., approx. deadband @ min. set point 0.30, approx. deadband @ max. set point 0.40.

Commodity Code	2800
Compliance	CE, CSA, FM, UL.
Electrical Connection	3 screw type, common, normally open and normally closed.
Electrical Rating	15 A @ 125, 250, 480 VAC, 60 Hz. Resistive ⅛ HP @ 125 VAC, ¼ HP @ 250 VAC, 60 Hz.
Enclosure Rating	NEMA 3 (IP54), NEMA 7 and 9.
Mounting Orientation	Diaphragm in vertical position. Consult factory for other position orientations.
Pressure Limit	Continuous: 1950’s - 45” w.c. (0.11 bar); 1950P’s - 35 psi (2.41 bar); 1950P-50 only - 70 psi (4.83 bar). Surge: 1950’s - 10 psi (0.69 bar); 1950P’s - 50 psi (3.45 bar); 1950P-50 only - 90 psi (6.21 bar).
Process Connection	⅛” female NPT.
Service	Air and non-combustible, compatible gases.
Set Point Adjustment	Screw type on top of housing.
Switch Type	Single-pole double-throw (SPDT).
Wetted Material	Consult factory.
