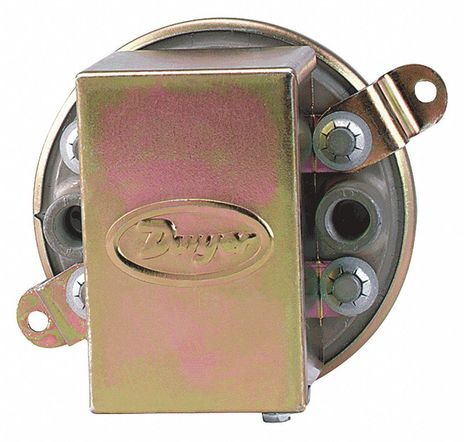

Dwyer 1910-0
SKU: CS31032MPN: 1910-0Alternate Part #: 114030-10
1910-0 PRESS SW .15-.5 INWC
$72.46
Unit25 in stock
Product Details
Differential pressure switch, range 0.15-0.5” w.c., approx. deadband @ min. set point 0.10, approx. deadband @ max. set point 0.10.
Attributes
| Commodity Code | 2600 |
| Compliance | CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals. |
| Electrical Connection | 3 screw type, common, normally open and normally closed. |
| Electrical Rating | 15 A @ 120-480 VAC, 60 Hz. Resistive ⅛ HP @ 125 VAC, ¼ HP @ 250 VAC, 60 Hz. Derate to 10 A for operation at high cycle rates. |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Pressure Limit | 45” w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge. |
| Process Connection | ⅛” female NPT. |
| Repeatability | ±3%. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Screw type inside conduit enclosure. |
| Switch Type | Single-pole double-throw (SPDT). |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS31032 |
|---|---|
| MPN | 1910-0 |
| Alternate Part # | 114030-10 |
