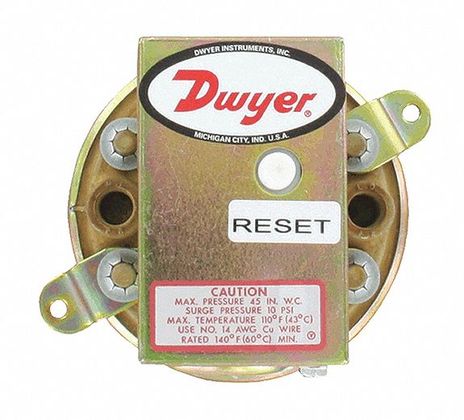

Dwyer 1900-10-MR

Name: Dwyer 1900-10-MR
Brand: Dwyer
SKU: CS812087
Price: 135.41 USD
Availability: OutOfStock

SKU: CS812087MPN: 1900-10-MRAlternate Part #: 114028-10

1900-10-MR

$135.41

Unit

Available on backorder

Quantity

remove

add

Product Details

Differential pressure switch, range 3.0-11.75” w.c., approx. deadband @ min. set point 0.40, approx. deadband @ max. set point 0.40, with manual reset option.

Attributes

Commodity Code	2600
Compliance	CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals.
Electrical Connection	3 screw type, common, normally open and normally closed.
Electrical Rating	15 A @ 120-480 VAC, 60 Hz. Resistive ⅛ HP @ 125 VAC, ¼ HP @ 250 VAC, 60 Hz. Derate to 10 A for operation at high cycle rates.
Mounting Orientation	Diaphragm in vertical position. Consult factory for other position orientations.
Pressure Limit	45” w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge.
Process Connection	⅛” female NPT.
Repeatability	±3%.
Service	Air and non-combustible, compatible gases.
Set Point Adjustment	Screw type inside conduit enclosure.
Switch Type	Single-pole double-throw (SPDT).
Wetted Material	Consult factory.
