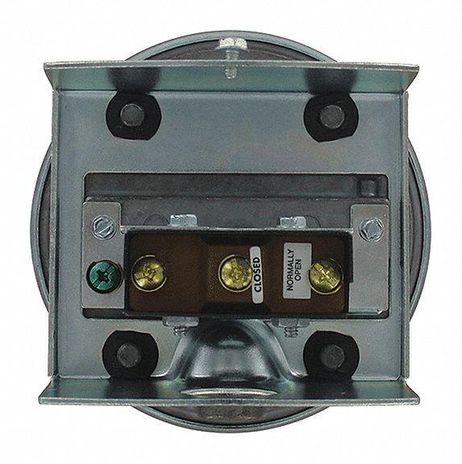

Dwyer 1823-20
SKU: CS27647MPN: 1823-20Alternate Part #: 114025-00
1823-20 PRESS SW 3-22 INWC
$121.29
Unit3 Units Available at Factory - Ships Same/Next Business Day
Product Details
Differential pressure switch, range 3-22” w.c., approx. deadband @ min. set point 0.35, approx. deadband @ max. set point 0.70.
Attributes
| Commodity Code | 2400 |
| Compliance | CE, CSA, FM, UL. NOTE: Optional (-EXPL) Explosion-proof Enclosure does not possess any agency approvals. |
| Electrical Connection | 3 screw type, common, normally open and normally closed. |
| Electrical Rating | 15 A @ 120-480 VAC, 60 Hz. Resistive ⅛ HP @ 125 VAC, ¼ HP @ 250 VAC, 60 Hz. De-rate to 10 A for operation at high cycle rates. |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Pressure Limit | 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge. |
| Process Connection | ⅛” female NPT. |
| Repeatability | ±2%. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Screw type inside mounting spud. |
| Switch Type | Single-pole double-throw (SPDT). |
| Wetted Material | Consult Factory. |
Specifications
| SKU | CS27647 |
|---|---|
| MPN | 1823-20 |
| Alternate Part # | 114025-00 |
