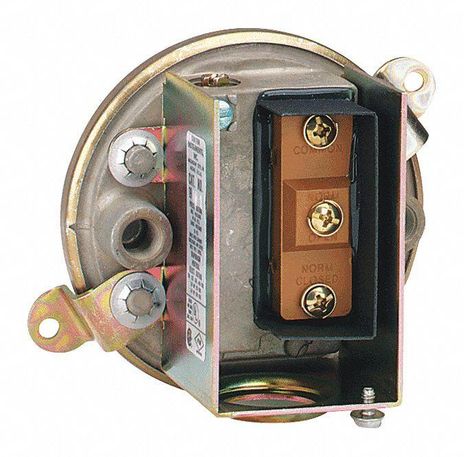

Dwyer 1910-00
SKU: CS52570MPN: 1910-00Alternate Part #: 114029-10
1910-00 PRESS SW .07-.15 INWC
$83.52
Unit15 in stock
Product Details
Differential pressure switch, range 0.07-0.15” w.c., approx. deadband @ min. set point 0.04, approx. deadband @ max. set point 0.04.
Attributes
| Commodity Code | 2600 |
| Compliance | CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals. |
| Electrical Connection | 3 screw type, common, normally open and normally closed. |
| Electrical Rating | 15 A @ 120-480 VAC, 60 Hz. Resistive ⅛ HP @ 125 VAC, ¼ HP @ 250 VAC, 60 Hz. Derate to 10 A for operation at high cycle rates. |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Pressure Limit | 45” w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge. |
| Process Connection | ⅛” female NPT. |
| Repeatability | ±3%. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Screw type inside conduit enclosure. |
| Switch Type | Single-pole double-throw (SPDT). |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS52570 |
|---|---|
| MPN | 1910-00 |
| Alternate Part # | 114029-10 |
