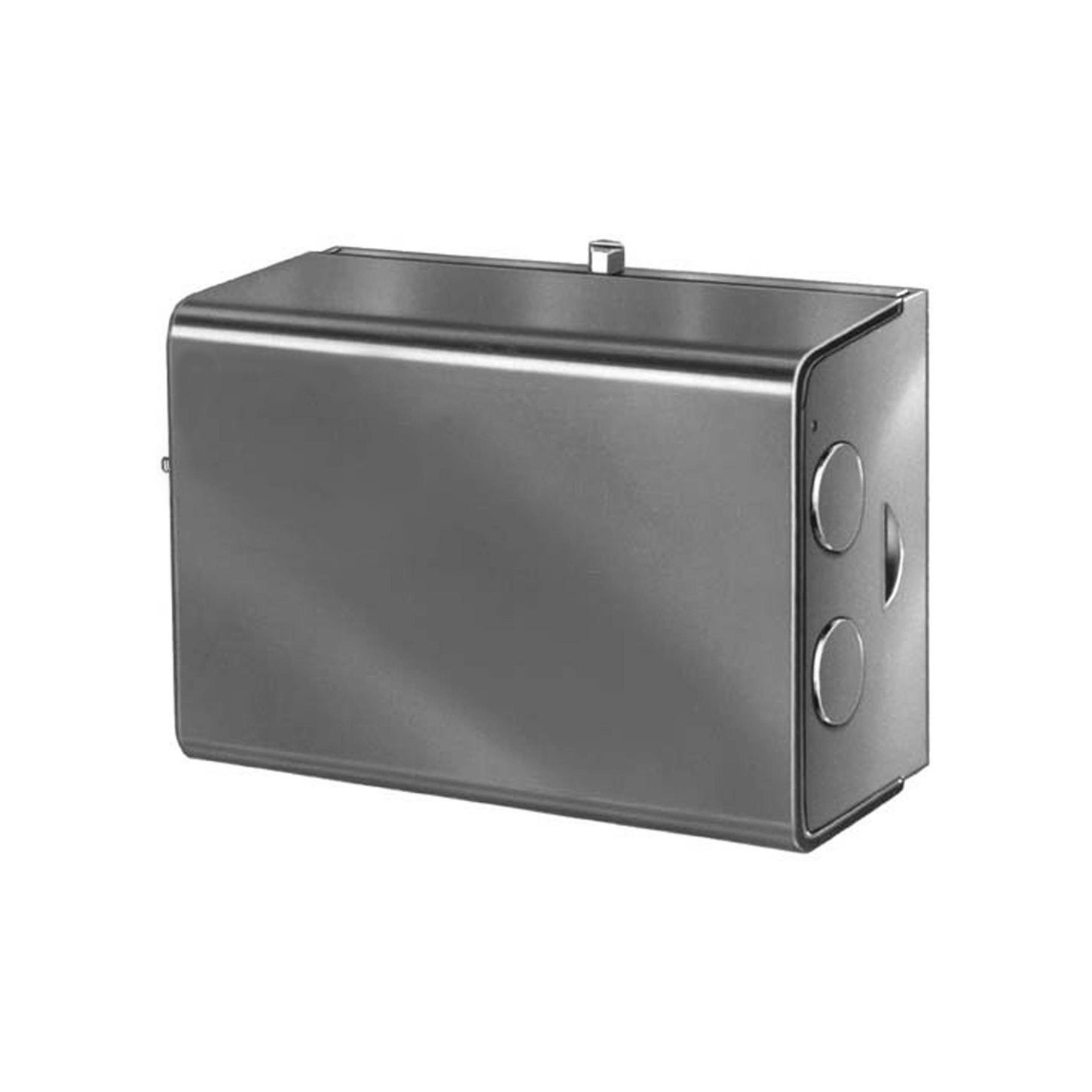

Resideo L8124E1016

Triple Aquastat Relay, High Limit protection, Low Limit and Circulation control, Low Limit- adjustable differential, High Limit: fixed differential

Description:

Triple Aquastat Relay with High limit : 10F fixed. low limit: 10-25F adj. Differential

Application:

Triple Aquastat Relay with High limit

Operating Range, Low Limit (F): 110F to 220F

Operating Range, Low Limit (C): 43C to 104C

Operating Range, High Limit (F): 130F to 240F

Operating Range, High Limit (C): 54C to 116C

Differential Temperature (F): High limit : 10F fixed. low limit: 10-25F adj.

Switching Action: SPST: High \& Low Limit

Maximum Operating Pressure (psi): 200 psi on outside of immersion well, 100 psi on capsule if inserted directly.

Maximum Operating Pressure (kPa): 1378 kPa on outside of immersion well, 690 kPa on capsule if inserted directly.

Electrical Ratings (burner AFL) Line Voltage: 7.4 A @ 120 Vac. 3.7 A @ 240 Vac

Electrical Ratings (burner ALR) Line Voltage: 44.4 A @ 120 Vac. 22.7 A @ 240 Vac Electrical Ratings (circulator AFL): 7.4 A @ 120 Vac. 3.7 A @ 240 Vac

Electrical Ratings (circulator ALR): 44.4 A @ 120 Vac. 22.7 A @ 240 Vac

Voltage: 120 Vac

Frequency: 60 Hz

Dimensions (in.): 6 ⅛ in. high x 4 ⅜ in. wide x 3 1/16 in. deep

Dimensions (mm): 156 mm high x 111 mm wide x 78 mm deep

Mounting: Vertical Mounting

Operating Humidity Range (% RH): 0 to 95% RH, non-condensing

Maximum Ambient Temperature (F): 150F at switches, 265F at sensing element.

Maximum Ambient Temperature (C): 66C at switches, 129C at sensing element.

Minimum Ambient Temperature (F): -30F

Minimum Ambient Temperature (C): -9C

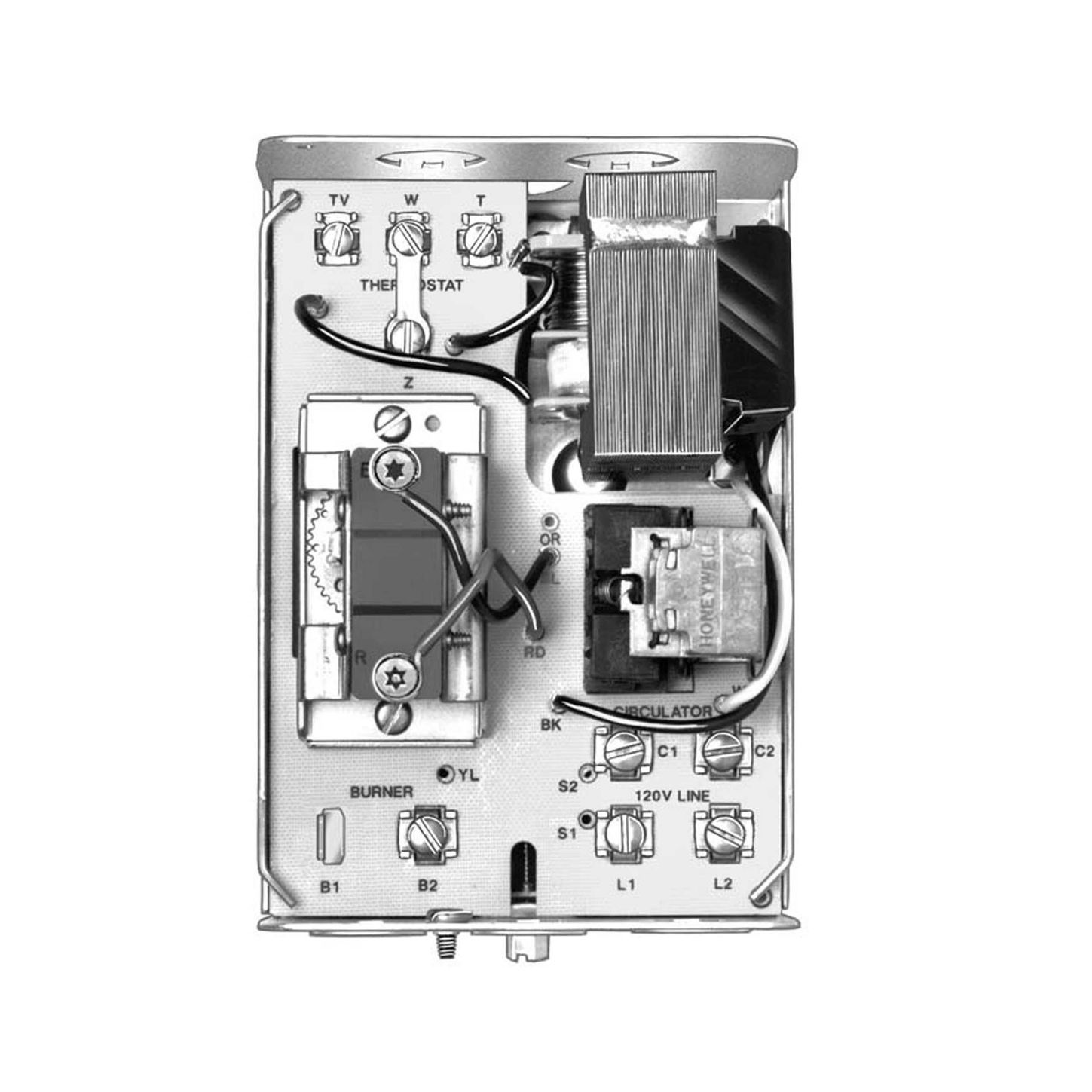

Electrical Connections: Quick-Connect / Screw

Ref: Honeywell.com
