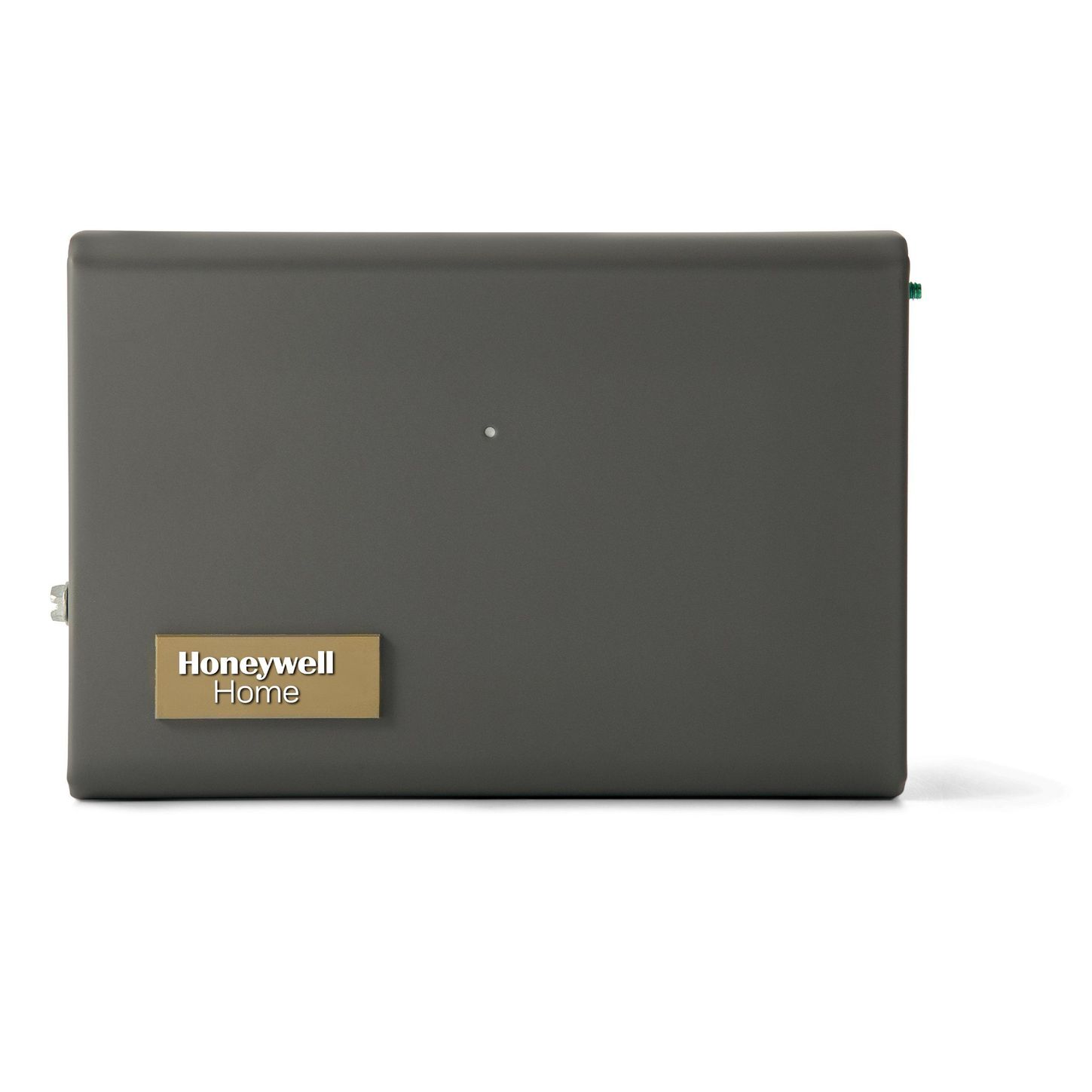

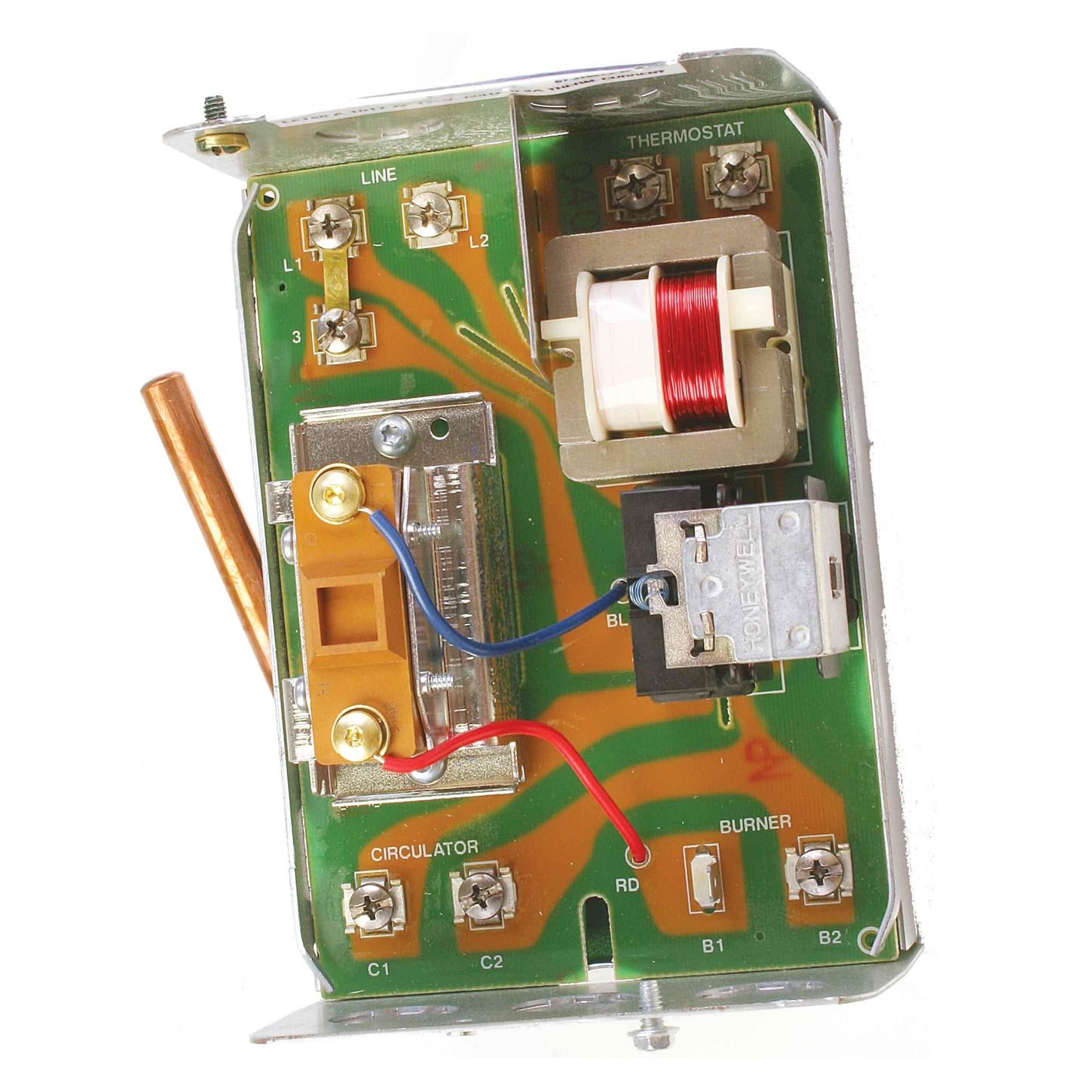

Resideo L8148A1017

Aquastat Relay, 140 to 240 F range with 8 degree F fixed differential, low volt/millivolt

Immersion-type controllers that combine high limit protection with switching relay control of burner and circulator motors.

Features:

• High limit opens burner circuit only.
• Include transformer and accessory terminals for adding a remote low limit controller.
• Case available for horizontal or vertical mounting.
• Requires a 24 Vac thermostat with heat anticipator set at 0.2A.

Specifications:

• High Limit Aquastat Relay with 8 F fixed differential
• Operating Range, High Limit (C): 54 C to 116 C
• Insulation Depth (in.): 1-½ in. to 3 in. less well.
• Insulation Depth (mm): 38 mm to 76 mm less well
• Maximum Ambient Temperature (C): 66 C with 1.2 A 24 V load; 25 C with 1.4A, 24V load
• Electrical Ratings, Burner: At Full Load-- Low Voltage: 0.8 A max. @ 24 Vac: Line Voltage: 7.4 A @ 120 Vac: 3.7 A @ 240 Vac; At Locked Rotor-- Line Voltage: 44.4 A @ 120 Vac: 22.7 A @ 240 Vac
• Approvals, Underwriters Laboratories Inc : UL Listed: File No. MP466, Vol. 13, Sec. 2, Guide No. MBPR2.
• Approvals, Canadian Standards Association: Certified: File No. LR1620, Guide No. 400-E-O
