ACI RIM-5

Name: ACI RIM-5
Brand: ACI
SKU: CS6287975
Availability: OutOfStock

SKU: CS6287975MPN: RIM-5Alternate Part #: 138058

12V/24VAC RELAY INTERFACE MOD

Product Details

12V/24VAC RELAY INTERFACE MOD

Wire Size	16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Connections	Screw Terminal Blocks
Coil Voltage	12 VDC(+/- 30%), or 24 VAC, (+/- 10%), 50/60 Hz
Product Weight	0.30 lbs. (0.136 Kg)
Supply Current	170 mA maximum
Agency Approvals	RoHS, WEEE

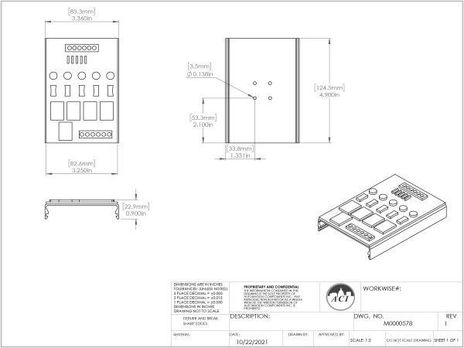

Product Dimensions	(L) 4.90” (W) 3.25” (H) 1.18” (81.92 x 82.55 x 29.97 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)

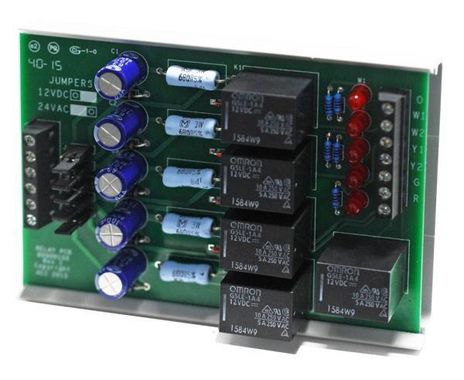

Digital Output Type	Five SPST Form “A” Relays
Relay Contact Rating	Total current of all relay outputs used must be no greater than 2.44A
Relay Electrical Life	100,000 operations minimum
Relay Mechanical Life	10,000,000 operations
Coil Voltage Selection	Jumper Selectable
Operating Humidity Range	0 to 95% non-condensing
Storage Temperature Range	-20 to 150°F (-40 to 65.5°C)
Operating Temperature Range	35 to 113°F (1.6 to 45°C)
Terminal Block Torque Rating	0.5 Nm nominal \| 0.6 Nm (maximum)
Snaptrack Flammability Rating	UL94 V-0
