ACI SW1

SKU: CS6286794MPN: SW1Alternate Part #: 127752

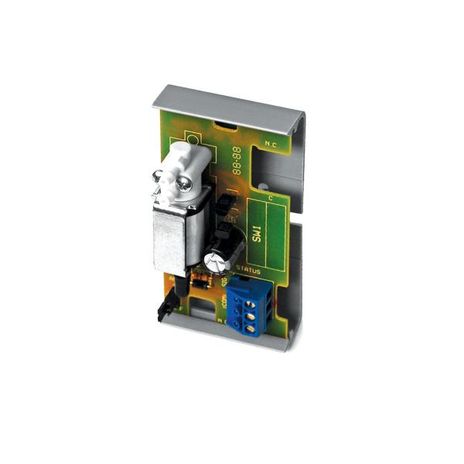

Electric to Pneumatic Switch

Product Details

Electric to Pneumatic Switch

Air Flow	1200 scim @ 20 psig (19.67 slpm)
Wire Size	16 (1.31 mm2) to 26 AWG (0.129 mm2)
Connections	90° Pluggable Screw Terminal Blocks
Product Weight	0.22 lbs. (0.099 Kg)
Supply Current	95 mA maximum (AC), 47 mA maximum (DC)
Supply Voltage	24 VAC or 24 VDC, +/- 10%
Agency Approvals	RoHS, WEEE
Operating RH Range	5 to 95% non condensing

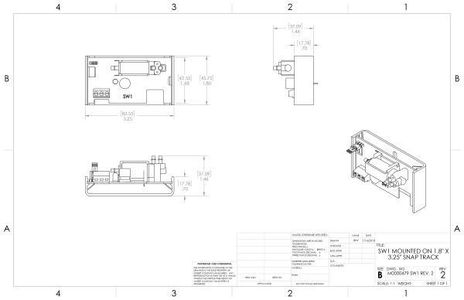

Product Dimensions	(L) 1.68” (W) 3.25” (H) 1.50” (42.54 x 82.55 x 38.10 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Air Supply Pressure	35 psig maximum (241 KPa)
Output Pressure Range	Same as Supply
Storage Temperature Range	-10 to 150°F (-23.3 to 65.5°C)
Operating Temperature Range	-10 to 150ºF (-23 to 65.56ºC)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Snaptrack Flammability Rating	UL94 V-0
Tubing Connection \| Tubing Size	5/32” O.D. (⅛“ I.D.) Polyethylene or PVC Tubing
