ACI SL-2000-P

Name: ACI SL-2000-P
Brand: ACI
SKU: CS6285326
Availability: OutOfStock

SKU: CS6285326MPN: SL-2000-PAlternate Part #: 105792

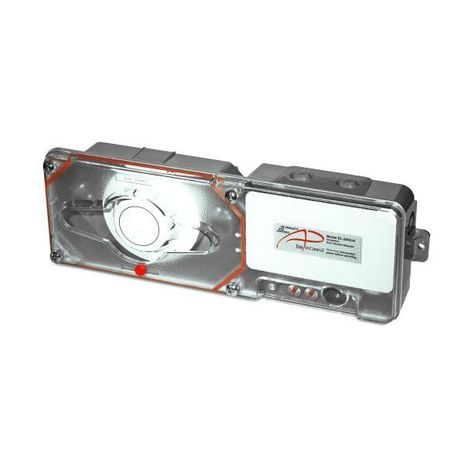

Smoke Detector, Duct, Multi-Application, Photoelectric

Product Details

Smoke Detector, Duct, Multi-Application, Photoelectric

Temperature Series	Photoelectric

NEMA Rating	NEMA 1
Air Velocity	100 to 4,000 ft / minute
Alarm Relays	Resistive Load: 2 sets form “C” rated at 10 Amps @ 115 VAC Resistive Load: 1 set form “A” rated at 2 Amps
Product Weight	2.5 lbs (1.13 kg)
Supply Voltage	24 VAC/VDC, 115 VAC , 230 VAC
Trouble Relays	Resistive Load: 1 set form “C” rated at 10 Amps @ 115 VAC
Agency Approvals	UL \& CUL Listed (UL268A, UROX, UROX7) File # S2829 CSFM Listed (3240-1004:105) MEA Accepted (73-92-E; VOL. 27)

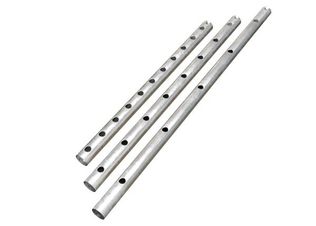

Hardware Included	7” exhaust tube, sampling tube end cap, mounting template, test magnet, \& mounting hardware Note: Sampling tube not included and must be ordered.
Enclosure Material	Grey plastic backbox, clear plastic cover (Makrolon 94V-0)

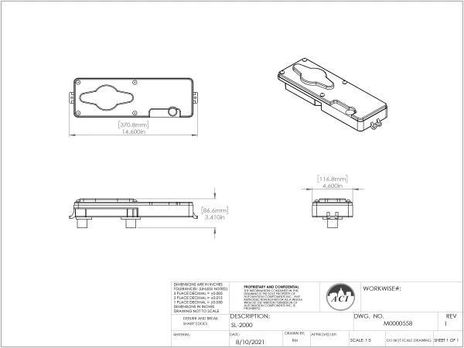

Product Dimensions	(L) 13.5” (342.9 mm) x (W) 4.5” (114.3 mm) x (H) 2.25” (57.15 mm)
Detection Head Type	Photoelectric or Ionization: See Ordering Grid
Radioactive Element	For SL-2000-N (Ionization) Americium 241; 0.9 Micro-Curie \| Do not expose to corrosive atmospheres
Operating Humidity Range	Maximum: 85 ±5 % RH (@32 ±2°C; 86 ±3.6°F) Non-Condensing / Non-Freezing
Operating Temperature Range	SL-2000-N: 32ºF to 158ºF (0ºC to 70ºC) SL-2000-P: 32ºF to 140ºF (0ºC to 60ºC)
Wiring Connections / Wire Size	Screw Terminal Blocks \| Solid or Stranded: #12 to #22 AWG
Maximum Operating Current (Alarm)	24 VDC: 68 mA \| 24 VAC: 190 mA \| 115 VAC: 32 mA \| 230 VAC: 18 mA
Maximum Operating Current (Standby)	24 VDC: 14 mA \| 24 VAC: 55 mA \| 115 VAC: 22 mA \| 230 VAC: 12 mA
