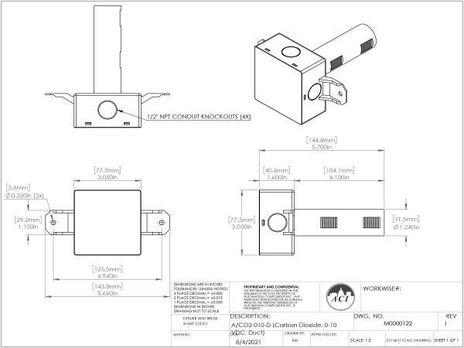

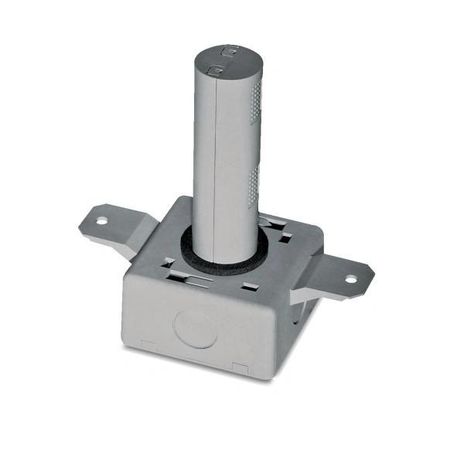

ACI CO2-010-D
SKU: CS6285389MPN: CO2-010-DAlternate Part #: 116282
Carbon Dioxide Sensor, Duct Mount, 0-10VDC Output
Contact us for pricing and availability
Product Details
Carbon Dioxide Sensor, Duct Mount, 0-10VDC Output
Product Family Specifications
| Accuracy | +/- 40 ppm +3% of Reading @ 72F (22C) |
|---|---|
| Stability | \< 2% FS over life of sensor (15 Yrs Typical) |
| Coverage Area | 7,500 sq. ft. maximum |
| Response Time | 3 min. typical for 90% Step change |
| Sensing Range | 0 to 2000ppm |
| Supply Voltage | 18 to 30 VAC RMS, 50/60 Hz or 18 to 42 VDC |
| CO2 Output Signal | 0 to 10 VDC (100 Ohms output impedance) |
| Power Consumption | Typical, 1.65 W Pek, 0.65 W Avg. @ 42 VDC |
| Pressure Dependence | 0.13% of reading per mm Hg |
| Operating Temperature / RH | 32 to 122F (0 to 50C) / 0 to 95%, non-condensing |
| Nominal Thermistor Resistive Output @ 77°F (25°C) (Lead Wire Colors) | 20K NTC Thermistor |
Specifications
| SKU | CS6285389 |
|---|---|
| MPN | CO2-010-D |
| Alternate Part # | 116282 |
You may also like

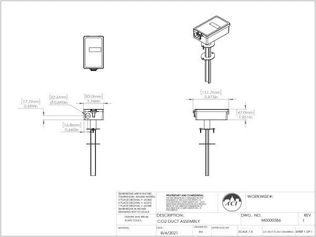

ACI A/CO2-DUCT
Contact us for pricing and availability
ACI A/CO2-R2
Contact us for pricing and availability
ACI A/CO2-R2O
Contact us for pricing and availability

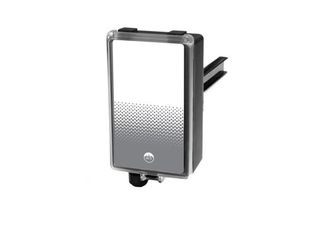

ACI A/CO2-DUCT-C
