ACI A/CO2-DUCT

Name: ACI A/CO2-DUCT
Brand: ACI
SKU: CS3739278
Availability: OutOfStock

SKU: CS3739278MPN: A/CO2-DUCTAlternate Part #: 150117

Carbon Dioxide Sensor, Duct, 0-2000ppm (0-5V, 0-10V, or 4-20mA)

Product Details

Carbon Dioxide Sensor, Duct, 0-2000ppm (0-5V, 0-10V, or 4-20mA)

Configuration Modification	None

Accuracy	+/- 40 ppm and +/- 3% of reading (@ 15-35°C; 20-70% RH and 101.3 kPa)
Fail Safe	Polarity protected
Calibration	ABC algorithm (Automatic Baseline Correction)
Sensor Life	> 15 years (typical)
Sensor Type	Single beam infrared sensing technology (NDIR)
Warm Up Time	\< 1 Minute (@ full specs \< 15 minutes)
Response Time	≤ 2 minutes, diffusion
Sensing Range	0 to 2,000 ppm
Output Signals	Output 1: 0-5 VDC or 0-10 VDC (Default) Output 2: 4-20 mA (500Ohm load maximum)
Product Weight	0.79 lbs (0.36 kg)
Sensing Method	Diffusion
Supply Voltage	24 VAC +/-20%, 50/60 Hz (half-wave rectifier) \| 16.5-40 VDC maximum
Agency Approvals	EMC Directive 2014/30/EC \| RoHS Directive 2011/65/EU
Power Consumption	3 VA for 24 VAC, 3W for 24 VDC (peak); \<0.9W (average)
Operating RH Range	0 to 95%, non-condensing

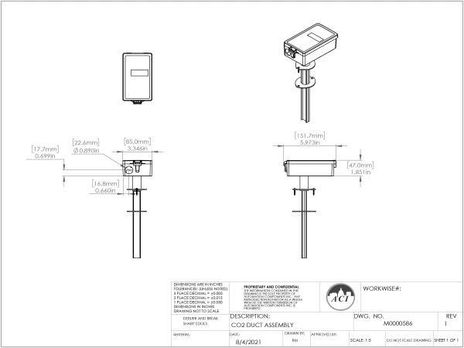

Product Dimensions	(H) 5.59” (142 mm) x (W) 3.31” (84 mm) x (D) 1.81” (46 mm)
Extended CO2 Ranges	Up to 10,000 ppm (factory set)
Pressure Dependence	+ 1.6% reading per kPa (deviation from standard pressure 101.3 kPa)
Connections \| Wire Size	Screw Terminal Blocks \| 16 (1.31 mm2) to 26 (0.129 mm2) AWG
Operating Temperature Range	32 to 122°F (0 to 50°C)
Terminal Block Torque Rating	0.5 Nm (minimum); 0.6 Nm (maximum)
Extended Range Accuracy>2,000 PPM	+/- 30 ppm and +/- 5% of reading
Enclosure Material \| Flammability Rating	Duct Box: IP65 rated, PC \& ABS blend, Flammability Rating UL94V-0 Cover: Makrolon® 6555 plastic, Flammability Rating UL94V-0 Pipe: PC \& ABS blend, Flammability Rating UL94V-0
