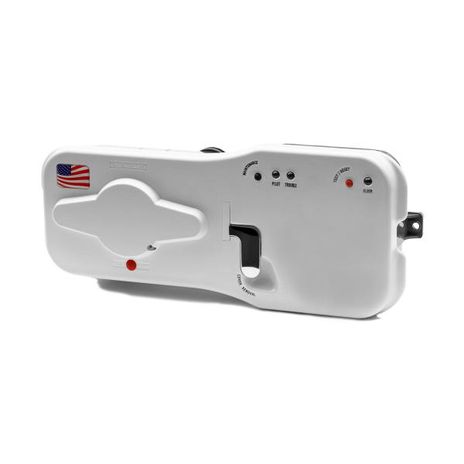

ACI RT-3000-P

Name: ACI RT-3000-P
Brand: ACI
SKU: CS6286814
Availability: OutOfStock

SKU: CS6286814MPN: RT-3000-PAlternate Part #: 128328

Smoke Detector, Duct, Multi-Application, NEMA 4X, Photoelectric

Product Details

Smoke Detector, Duct, Multi-Application, NEMA 4X, Photoelectric

NEMA Rating	NEMA 4X
Air Velocity	100 to 4,000 ft / minute
Alarm Relays	Resistive Load: 2 sets form “C” rated at 10 Amps @ 125 VAC Resistive Load: 1 set form “A” rated at 1 Amps @ 30 VDC
Product Weight	3.5 lbs (1.59 kg)
Supply Voltage	24 VAC/VDC, 115 VAC , 230 VAC
Trouble Relays	Resistive Load: 1 set form “C” rated at 10 Amps @ 125 VAC Resistive Load: 1 set form “B” rated at 7 Amps
Agency Approvals	UL Listed (UL268A, UROX) File # S2829, CSFM Listed (3240-1004:121)
Hardware Included	7” exhaust tube, FAST Tube sectional sampling tube starter, sampling tube end cap, mounting template, test magnet, and mounting hardware included Note: Sampling tube not included and must be ordered
Enclosure Material	Grey plastic backbox, white plastic cover (Makrolon 94V-0)

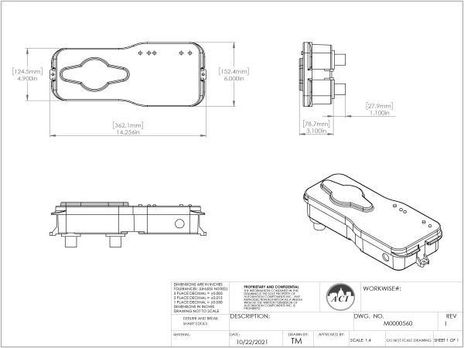

Product Dimensions	(L) 13.5” (342.9 mm) x (W) 5.5” (134.8 mm) x (H) 2.25” (57.15 mm)
Detection Head Type	Photoelectric
Operating Humidity Range	10% to 93% RH (@32ºC) Non-Condensing / Non-Freezing
Operating Temperature Range	RT-3000-P: -4ºF to 158ºF (-20ºC to 70ºC)
Wiring Connections / Wire Size	Screw Terminal Blocks \| Solid or Stranded: #14 to #24 AWG
Maximum Operating Current (Alarm)	24 VDC: 100 mA \| 24 VAC: 251 mA \| 115 VAC: 50 mA \| 230 VAC: 29 mA
Maximum Operating Current (Standby)	24 VDC: 45 mA \| 24 VAC: 122.6 mA \| 115 VAC: 31 mA \| 230 VAC: 17 mA
