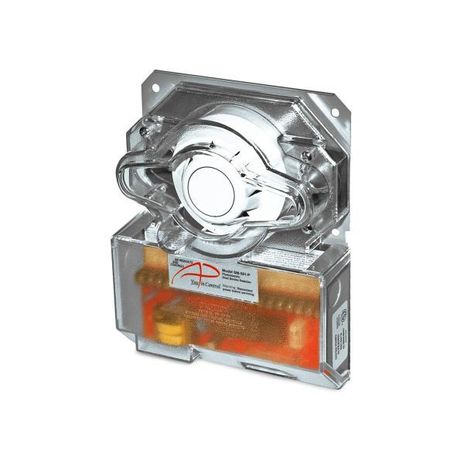

ACI SM-501-P

Name: ACI SM-501-P
Brand: ACI
SKU: CS6285315
Availability: OutOfStock

SKU: CS6285315MPN: SM-501-PAlternate Part #: 102955

Smoke Detector, Photoelectric

Product Details

Smoke Detector, Photoelectric

NEMA Rating	NEMA 1
Air Velocity	500 to 4,000 ft / minute
Alarm Relays	Two (2)
Contact Form	Form 1C (SPDT Contact)
Product Weight	3.5 lbs (1.59 kg)
Supply Voltage	24 VAC/VDC, 115 VAC , 230 VAC
Surface Finish	Grey
Trouble Relays	One (1)
Agency Approvals	UL \& CUL Listed (UL268A, UROX, UROX7), File # S2829 CSFM Listed (3240-1004:108) MEA Accepted (73-92-E; VOL. 26)
Hardware Included	7” exhaust tube, sampling tube end cap, mounting template \& mounting hardware Sampling tube must be ordered and not included.
Enclosure Material	18 ga. Steel backbox, clear plastic cover (Makrolon 94V-0)

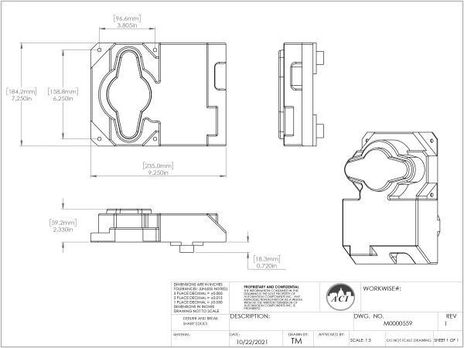

Product Dimensions	(L) 9.125” (231.8 mm) x (W) 7.25” (184.15 mm) x (H) 2.25” (57.15 mm)
Detection Head Type	Photoelectric or Ionization: See Ordering Grid
Radioactive Element	For SM-501-N (Ionization) Americium 241; 0.9 Micro-Curie \| Do not expose to corrosive atmospheres
Operating Humidity Range	Maximum: 85 ±5 % RH (@32 ±2°C; 86 ±3.6°F) Non-Condensing / Non-Freezing
Operating Temperature Range	SM-501-N: 32ºF to 158ºF (0ºC to 70ºC) SM-501-P: 32ºF to 140ºF (0ºC to 60ºC)
Wiring Connections / Wire Size	Screw Terminal Blocks \| Solid or Stranded: #12 to #22 AWG
Maximum Contact Switching Current	10 Amps (Resistive)
Maximum Contact Switching Voltage	115 VAC
Maximum Operating Current (Alarm)	24 VDC: 56 mA \| 24 VAC: 74 mA \| 115 VAC: 32 mA \| 230 VAC: 16 mA
Maximum Operating Current (Standby)	24 VDC: 15 mA \| 24 VAC: 35 mA \| 115 VAC: 25 mA \| 230 VAC: 12 mA
