ACI PXP100

SKU: CS774784MPN: PXP100Alternate Part #: 105528

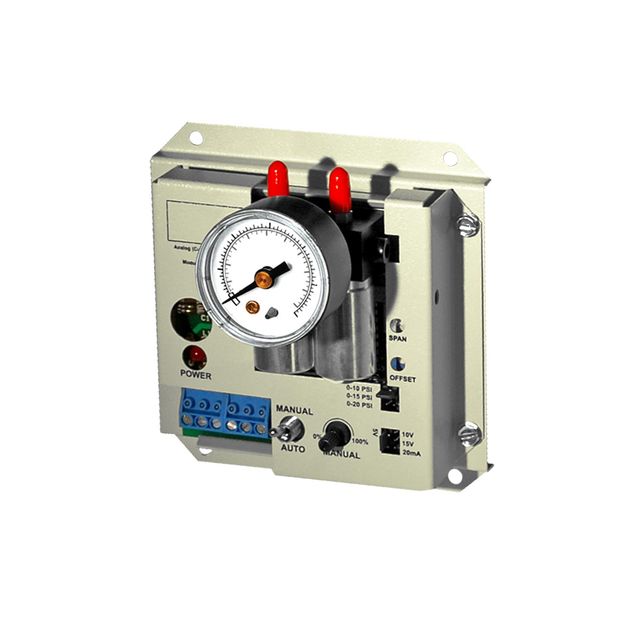

Analog Input (0-5VDC), Pressure Output (0-100PSI), Dual Valve, Maintains Branch Pressure, (0-10V, 0-15V, 0-20mA Selectable)

ACI PXP100
ACI PXP100
ACI PXP100
ACI PXP100
Contact us for pricing and availability

Product Details

Analog Input (0-5VDC), Pressure Output (0-100PSI), Dual Valve, Maintains Branch Pressure, (0-10V, 0-15V, 0-20mA Selectable)

Product Family Specifications

Air Flow Supply valves @ 100 main (689.5 kPa)/95 psig (655 kPa) out, 750 scim (12.29 liters) Branch line requires 4 cubic inches (65.54 cc) minimum volume.
Filtering Externally by Customer
Wire Size 16 (1.31 mm2) to 26 AWG (0.129 mm2)
Product Weight 0.47 lbs. (0.2126 Kg)
Supply Current 160 mA maximum, 200 mA on fail safe models
Supply Voltage 24 VAC (+/-10%), 50 or 60Hz, 24 VDC (+10%/- 5%)
Agency Approvals RoHS2, WEEE
Pneumatic Fitting Accepts ¼” OD rigid or semi-rigid metallic tubing using integral compression fitting, ferrule \& nut

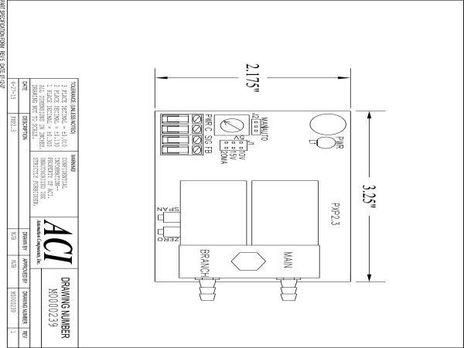

Product Dimensions (L) 3.25” (W) 2.18” (H) 1.87” (82.55 x 55.37 x 47.49 mm)
Snaptrack Material Polyvinyl Chloride (PVC)
Air Supply Pressure Maximum: 110 psig (758.4 kPa) | Typical: 102 psig (710.2 kPa) to 106 psig (730.8 kPa)
Input Signal Source 0-5 VDC @ 10,000 Ω | 0-10 VDC @ 10,000Ω | 0-15 VDC @ 10,000Ω | 0-20 mA @ 250Ω
Output Pressure Range Field Calibration Possible: 0 to 100 psig (0-689.5 kPa) maximum
Air Supply Consumption 750 scim (12.29 liters)
Operating Humidity Range 10 to 95% non-condensing
Output Pressure Accuracy 1% full scale @ room temperature | 2% full scale across operating temperature range
Storage Temperature Range -20 to 150°F (-28.9 to 65.5°C)
Operating Temperature Range 35 to 120°F (1.7 to 48.9°C)
Feedback Output Signal Range 0-5 VDC \= Output Span
Terminal Block Torque Rating 0.5 Nm (Minimum); 0.6 Nm (Maximum)
Manual / Auto Override Switch MAN function \= output can be varied | AUTO function \= output is controlled from input signal
Snaptrack Flammability Rating UL94 V-0

Specifications

SKUCS774784
MPNPXP100
Alternate Part #105528
