ACI PXP0.3G

SKU: CS6286782MPN: PXP0.3GAlternate Part #: 127206

Analog Input (0-5VDC), Pressure Output (0-15PSI), Single Valve, No Bleed Orifice, Gauge, (0-10V, 0-15V, 0-20mA Selectable)

ACI PXP0.3G, PXP1.3G
ACI PXP0.3G, PXP1.3G
ACI PXP0.3G, PXP1.3G
ACI PXP0.3G, PXP1.3G
Contact us for pricing and availability

Product Details

Analog Input (0-5VDC), Pressure Output (0-15PSI), Single Valve, No Bleed Orifice, Gauge, (0-10V, 0-15V, 0-20mA Selectable)

Product Configuration

Gauge With Gauge
Valves 1 Valve
Exhaust (Branch) Consumption None

Product Family Specifications

Air Flow Supply valves @ 20 psig (138 kPa) main/15 psig (103 kPa) out, 2300 scim Branch Line requires 2 in3 or 33.78 cm3 (min.). Branch line min. of 25 feet of ¼” O.D. poly tubing
Filtering Furnished with integral-in-barb 80-100 micron filter (Part # PN004) except for PXP2LG which is furnished with external 5 micron in-line filter (PN021)
Wire Size 16 (1.31 mm2) to 26 AWG (0.129 mm2)
Connections 90° Pluggable Screw Terminal Blocks
Product Weight PXP1.3: 0.40 lbs. (0.1814 Kg) | PXP2.3: 0.47 lbs. (0.2126 Kg) | PXP1.3G: 0.49 lbs. (0.2211 Kg) PXP2.3G \& PXP2.3GFS: 0.59 lbs. (0.2693 Kg)
Supply Current 300 mAAC, 200mADC Maximum | 400mAAC, 200mADC on fail safe models
Supply Voltage 24 VAC (+/- 10%), 50 or 60Hz, 24 VDC (+10% /-5%)
Agency Approvals RoHS2, WEEE
Pneumatic Fitting Removeable brass barbed fittings for Main and Branch in machined aluminum manifold Plugged ⅛-27-FNPT gauge port | Gauge installed at additional cost
Operating RH Range 10 to 95% non-condensing

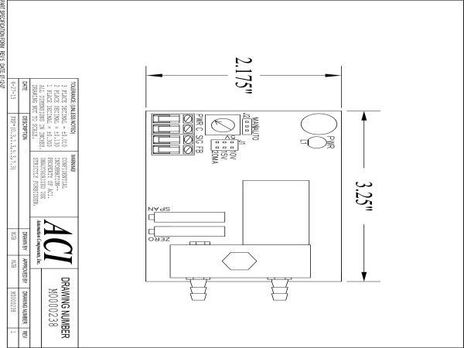

Product Dimensions No Gauge: (L) 3.25” (W) 2.18” (H) 1.87” (82.55 x 55.37 x 47.49 mm) With Gauge: (L) 3.25” (W) 2.18” (H) 2.95” (82.55 x 55.37 x 74.9 mm)
Snaptrack Material Polyvinyl Chloride (PVC)
Air Supply Pressure Maximum: 25 psig (172.369 kPa) | Minimum: 18 psig (124.106 kPa)
Input Signal Source 0-5 VDC @ 10,000 Ω | 0-10 VDC @ 10,000Ω | 0-15 VDC @ 10,000Ω | 0-20 mA @ 250Ω
Output Pressure Range 0 to 15 psig (0-103.421 kPa) maximum
Output Pressure Accuracy 1% full scale @ room temperature | 2% full scale across operating temperature range
Storage Temperature Range -20 to 150°F (-28.9 to 65.5°C)
Operating Temperature Range 35 to 120°F (1.7 to 48.9°C)
Feedback Output Signal Range 0-5 VDC \= Output Span
Terminal Block Torque Rating 0.5 Nm (Minimum); 0.6 Nm (Maximum)
Manual / Auto Override Switch MAN function \= output can be varied | AUTO function \= output is controlled from input signal
Snaptrack Flammability Rating UL94 V-0
Gauge Pressure Range (Gauge Models) 0-30 psig (0-200 kPa)
Gauge Pressure Accuracy (Gauge Models) ± 2.5% Midscale (± 3.5% Full Scale)
Connections | Pneumatic Tubing Size-Type ¼” O.D. nominal (⅛” I.D.) polyethylene

Specifications

SKUCS6286782
MPNPXP0.3G
Alternate Part #127206
