ACI PTS4.1

Name: ACI PTS4.1
Brand: ACI
SKU: CS6286793
Availability: OutOfStock

SKU: CS6286793MPN: PTS4.1Alternate Part #: 127749

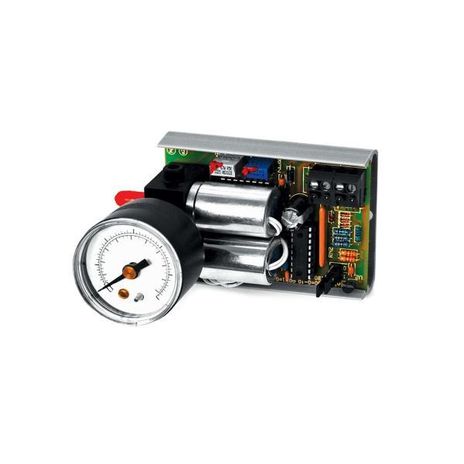

Floating Point Input (90 sec), Pressure Output (0-15PSI), Dual Valve, Maintains Branch Pressure, (0-10PSI, 5-15PSI Selectable)

Product Details

Floating Point Input (90 sec), Pressure Output (0-15PSI), Dual Valve, Maintains Branch Pressure, (0-10PSI, 5-15PSI Selectable)

Product Configuration

Gauge	No Gauge

Product Family Specifications

Accuracy	2% @ room temperature, 3% @ full range of operating temperature
Air Flow	Supply valves @ 20 psig (138 kPa) main/15 psig (103 kPa) out, 2300 scim, Branch Line requires 2 in3 or 33.78 cm3 (min) \| Unit requires min. of 25 ft of ¼” O.D. poly tubing
Filtering	Furnished with integral-in-barb 80-100 micron filter (Part # PN004)
Wire Size	16 (1.31 mm2) to 26 AWG (0.129 mm2)
Connections	90° Pluggable Screw Terminal Blocks
Product Weight	0.61 lbs. (0.276 Kg)
Rate of Change	90 Seconds
Supply Current	PTS4.1: 350mAAC, 200mADC Maximum
Supply Voltage	24 VAC +/-10% at terminals
Agency Approvals	RoHS2, WEEE
Pneumatic Fitting	Removeable brass barbed fittings for Main and Branch in machined aluminum manifold Plugged ⅛-27-FNPT gauge port \| Gauge installed at additional cost

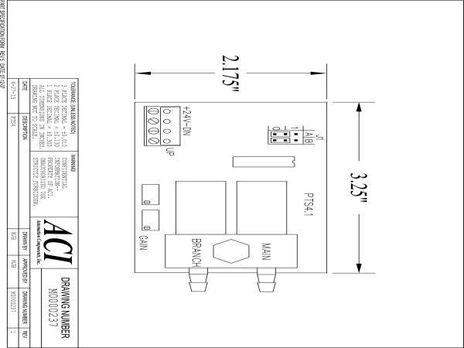

Product Dimensions	No Gauge: (L) 3.25” (W) 2.18” (H) 1.87” (82.55 x 55.24 x 47.49 mm) With Gauge: (L) 3.69” (W) 2.30” (H) 2.95” (93.60 x 58.42 x 74.9 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Air Supply Pressure	25 psig (172 kPa) maximum, 20 psig (138 kPa) minimum
Operating Humidity Range	10 to 95% non-condensing
Storage Temperature Range	-10 to 150°F (-23.3 to 65.5°C)
Digital Input Signal Source	Two (2) Relay Contact Closures, Transistors or TRIACs (no accessories required)
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Snaptrack Flammability Rating	UL94 V-0
Gauge Pressure Range (Gauge Models)	0-30 psig (0-200 kPa)
Gauge Pressure Accuracy (Gauge Models)	± 2.5% Midscale (± 3.5% Full Scale)
Connections \| Pneumatic Tubing Size-Type	¼” O.D. nominal (⅛” I.D.) polyethylene
Output Pressure Range (Jumper Selectable)	0-10 psig (0-68.95 kPa), 5-15 psig (34.47-103.43 kPa), or 0-15 psig (0-103.43 kPa)
Digital Input Signal Trigger Level (@ Impedance)	9-24 VAC @ 750Ω
