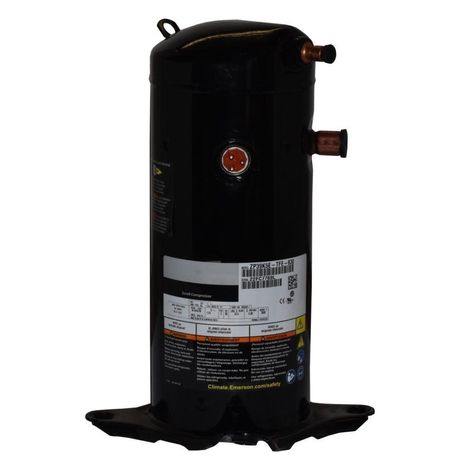

Carrier ZP39K5E-TFE-830

Name: Carrier ZP39K5E-TFE-830
Brand: Carrier
SKU: CS6228882
Availability: OutOfStock

SKU: CS6228882MPN: ZP39K5E-TFE-830

COMPRESSOR SCROLL

Product Details

Amps	3.1
Phase	Three
Voltage	575 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	39,000
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A
Displacement	2.25 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	71
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	574 lbs./hr.; 646 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	4.9
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F
Locked Rotor Amps (LRA)	33
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
