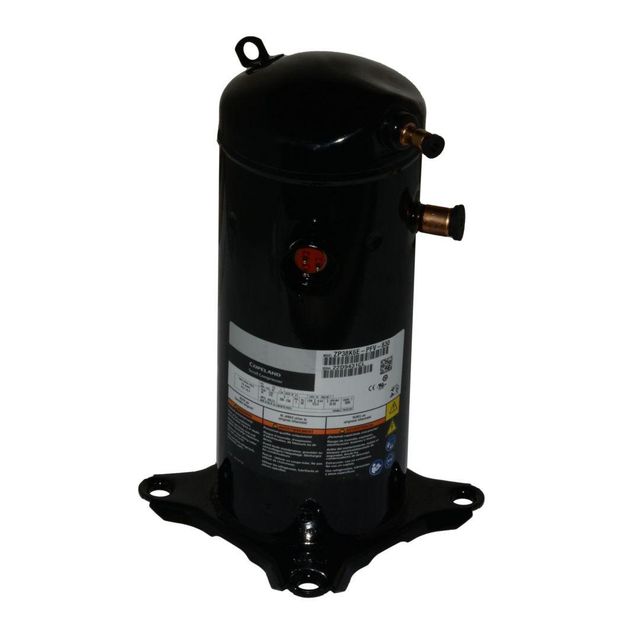

Carrier ZP29K5E-PFV-830

Name: Carrier ZP29K5E-PFV-830
Brand: Carrier
SKU: CS5466992
Price: 1176.35 USD
Availability: OutOfStock

SKU: CS5466992MPN: ZP29K5E-PFV-830

COMPRESSOR SCROLL

Product Details

Amps	15.7
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	29,000
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A; R-410B
Displacement	1.68 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	68
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	427 lbs./hr.; 486 lbs./hr.
Mounting Dimensions	7.5” X 7.5”
Rated Load Amps (RLA)	15.7
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F to 70°F (18.33°C to 21.11°C)
Suction Line Size (OD)	¾”
Evaporating Temperature	45°F to 50°F (7.22°C to 10°C)
Locked Rotor Amps (LRA)	77
Oil Charge Initial (oz.)	19
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
