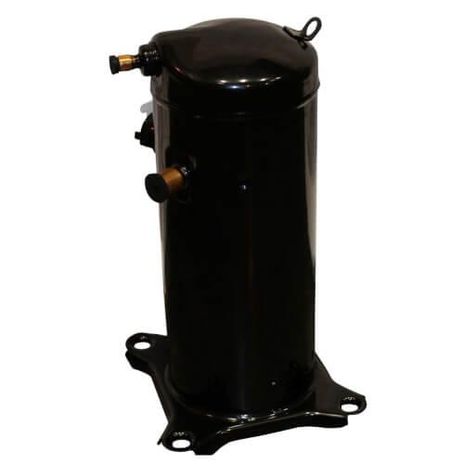

Carrier ZP49K6E-PFV-830

Name: Carrier ZP49K6E-PFV-830
Brand: Carrier
SKU: CS5787475
Availability: OutOfStock

SKU: CS5787475MPN: ZP49K6E-PFV-830

Scroll Compressor

Product Details

ZP49K6E-PFV-830 is an official OEM Scroll Compressor for Carrier HVAC equipment

Amps	13.8
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	49,000
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A
Displacement	2.77 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	68
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	722 lbs./hr.; 812 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	23.7
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	70°F (21.11°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	152.5
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
