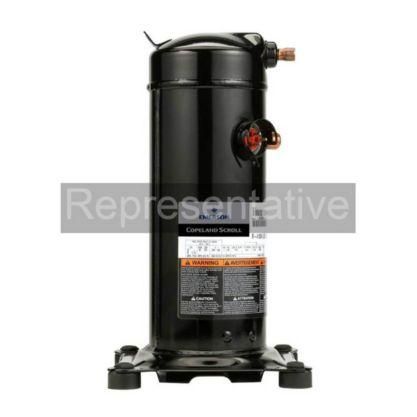

Carrier ZP51K6E-TFE-830

Name: Carrier ZP51K6E-TFE-830
Brand: Carrier
SKU: CS5792690
Availability: OutOfStock

SKU: CS5792690MPN: ZP51K6E-TFE-830

COMPRESSOR SCROLL

Product Details

COMPRESSOR SCROLL

Amps	3.9
Phase	Three
Voltage	575 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	51,000
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A
Displacement	2.94 (in^3/Rev
Compressor Type	Scroll
Sound Level (dBA)	71
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	5.95 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.22”
Rated Load Amps (RLA)	5.7
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F to 70°F (18.33°C to 21.11°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	38.9
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
