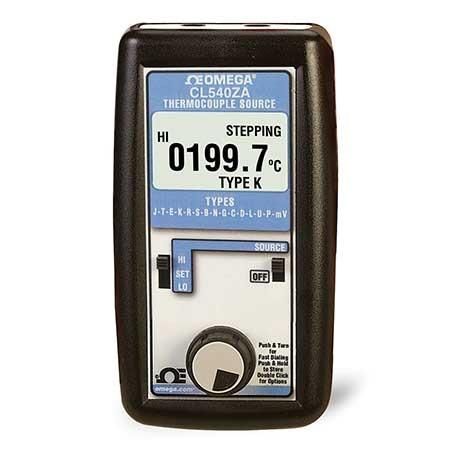

Omega CL540ZA

Name: Omega CL540ZA
Brand: Omega
SKU: CS5802138
Price: 1925.70 USD
Availability: OutOfStock

SKU: CS5802138MPN: CL540ZA

14 Thermocouple Types and Millivolt Calibrator \& Simulator

$1,925.70

Unit

Available on backorder

Quantity

remove

add

Documents

Width	69 mm
Height	45 mm
Length	126 mm
Weight	238 g
Accuracy	± 0.015 %
Series ID	CL540ZA-series
Weight Note	238 g (8.4 oz) (including batteries)
Battery life	50 hr
Display Type	LCD
Weight(Boot)	311.8 g
Supply Voltage	6 Vdc
Voltage Source	Output Impedance: < 0.3 Ω Source Current: > 20 mA (drives 80 mV into 10 Ω) Noise: ≤ 4 microvolts p-p for frequencies of 10 Hz or below
Accuracy Detail	± (0.015% of reading + 0.006 mV)
Dimensions(Boot)	144 L x 78 W x 52 D mm
Country of Origin	United States
Display Type Note	High contrast graphic liquid crystal display, LED backlighting for use in low lit areas
Thermocouple Type	J, K, T, E, N, R, S, U, B, G, C, D, L
Weight Note(Boot)	311.8 g (11 oz) (including batteries)
Battery Indication	A low battery indication is displayed when the battery voltage drops below the operating level
Additional Features 1	Source Only
Relative Humidity Note	10% ≤ RH ≤ 90% 0 to 35°C (32 to 95ºF), non-condensing. 10% ≤ RH ≤ 70% 35 to 60°C (95 to 140ºF), non-condensing
Relative Humidity, Max	0.9
Relative Humidity, Min	10%
Over-Voltage Protection	Over-voltage protection to 60 Vdc (rated for 30 seconds)
Cold Junction Compensation	± 0.25°C
Operating Temperature, Max	60 °C
Operating Temperature, Min	-25 °C
