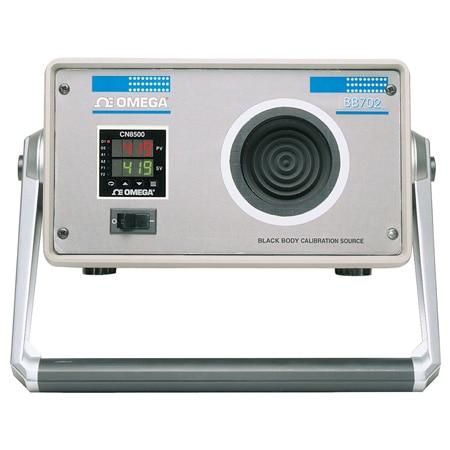

Omega BB702
SKU: CS5796519MPN: BB702
Ambient + 10°C to 215°C Temperature Blackbody Calibrator
Product Details
- Model BB702 Calibrates from Ambient +10 to 215°C (Ambient +20 to 420°F)
- Portable Rugged Design
- Calibrates Infrared Pyrometers Quickly and Accurately
- Built in Digital PID Autotune Temperature Controller with Temperature Readout
Attributes
| Width | 305 mm |
| Height | 152 mm |
| Length | 280 mm |
| Weight | 7.2 kg |
| Accuracy | ± 0.5 °C |
| Frequency | 50/60 Hz |
| Series ID | BB702-series |
| Stability | ±0.1°C |
| Target Size | 63.5 |
| Control Mode | PID Control |
| Display Type | LED |
| Warm Up Time | 12 min |
| Data Interface | RS232 |
| Supply Voltage | 115 Vac |
| Accuracy Detail | ±0.5°C, ±0.25% rdg (±0.9°F, ±0.25% rdg) |
| Cavity Emissivity | 0.95 |
| Country of Origin | United States |
| Power Consumption | 75 W |
| Warm-Up Time Note | 12 min from ambient to 204°C (400°F) |
| Additional Features 1 | Portable |
| Installation Category | II |
| Internal Sensing Element | Platinum RTD, class A, alpha = 0.00385 |
| Process Temperature, Max | 215 °C |
| Process Temperature, Min | 10 °C |
| Operating Temperature, Max | 45 °C |
| Operating Temperature, Min | 5 °C |
| Calibration Reference Sensor | Platinum RTD, class A, alpha = 0.00385 |
Specifications
| SKU | CS5796519 |
|---|---|
| MPN | BB702 |
