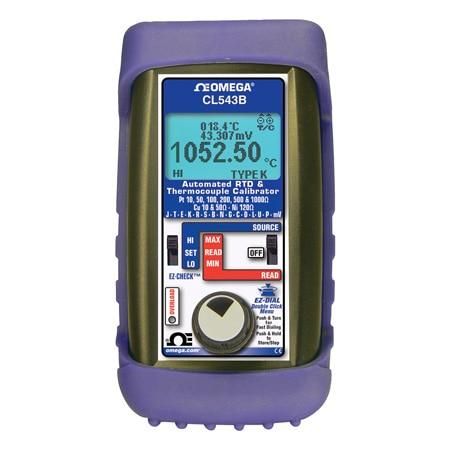

Omega CL543B

Name: Omega CL543B
Brand: Omega
SKU: CS5799653
Price: 2968.18 USD
Availability: OutOfStock

SKU: CS5799653MPN: CL543B

Thermocouple, Millivolt and RTD Calibrator and Thermometer

$2,968.18

Unit

Available on backorder

Quantity

remove

add

Documents

Omega CL543B Data Sheet

Product Details

Calibrate Thermocouple Instruments to 0.1 and 0.01, °F and °C
Types J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), (T-DIN) and P (Platinel): -13.000 to 80.000 mV
Calibrate RTD Instruments to 0.1 and 0.01, °F and °C
Pt 10, 50, 100, 200, 500 and 1000 (3850)

Attributes

Width	76 mm
Alerts	Red LED displays OVERLOAD or out of range conditions
Height	41 mm
Length	143 mm
Weight	0.34 kg
Series ID	CL543B-series
Weight Note	0.34 kg (12.1 oz) with boot and batteries
Battery life	50 hr, low battery warning with less than 1 hr operation left
Display Type	LCD
Voltage Read	Ranges and Resolution: -13.000 to 80.000 mV and -13.0000 to 80.0000 mV Accuracy: ± (0.008% of reading + 0.006 mV) Input resistance: ≥10 MΩ Normal Mode Rejection: 50/60 Hz,50 dB Common Mode Rejection: 50/60 Hz,120 dB
Supply Voltage	6 Vdc
Voltage Source	Ranges and Resolution: -13.000 to 80.000 mV and -13.0000 to 80.0000 mV Accuracy: ± (0.008% of setting + 0.006 mV) Source Current: ≥10 mA Output Impedance: <0.3Ω RMS Noise: ≤± 0.0005 mV from 0.1 to 10 Hz Short Circuit Duration: Infinite
Country of Origin	United States
Display Type Note	High contrast graphic Liquid Crystal Display. LED backlighting for use in low lit areas.
RTD and OHMS Read	Resistance Ranges: 400Ω Range: 0.00 to 401.00 and 0.000 to 401.000 4000Ω Range: 0.0 to 4010.0 and 0.00 to 4010.00 Accuracy: ± (0.015% of reading + 0.05Ω) Excitation Current: 0.9 mA to 401Ω, 0.4 mA to 4010Ω (nominal)
Thermocouple Type	J, K, T, E, N, R, S, U, B, G, C, D, L, P
Temperature Effect	≤± 25 ppm/°C
RTD and OHMS Source	3- and 4-Wire Accuracy: From 1 to 10.2 mA External Excitation Current: ± (0.015% of setting + 0.05Ω) Below 1 mA of External Excitation Current: Add (0.025 mV/mA excitation current) 2-Wire Accuracy: Add 0.1Ω to 3-wire and 4-wire accuracy Resistance Ranges: 400Ω Range: 0.00 to 401.00 and 0.000 to 401.000 4000Ω Range: 0.0 to 4010.0 and 0.00 to 4010.00 RMS Noise: 400Ω Range: ≤± 0.005Ω from 0.1 to 10 Hz 4000Ω Range: ≤± 0.05Ω from 0.1 to 10 Hz Allowable Excitation Current Range: 400Ω Range: 10.2 mA max; steady or pulsed/intermittent 4000Ω Range: 1 mA max; steady or pulsed/intermittent Pulsed Excitation Current Compatibility: DC to 0.01 second pulse width, 0.025 mV, mA excitation current
Cold Junction Sensor	≤± 0.01% °/ ° from ambient temperature ( °C or °F)
Additional Features 1	Read and Source Signals
Relative Humidity Note	10% ≤RH ≤90% (0 to 35°C),non-condensing; 10% ≤RH ≤70% (35 to 60°C),non-condensing
Relative Humidity, Max	0.9
Relative Humidity, Min	10%
Over-Voltage Protection	Up to 60 vrms (rated for 30 seconds), protection against misconnection
Storage Temperature, Max	60 °C
Storage Temperature, Min	-30 °C
Operating Temperature, Max	60 °C
Operating Temperature, Min	-20 °C
