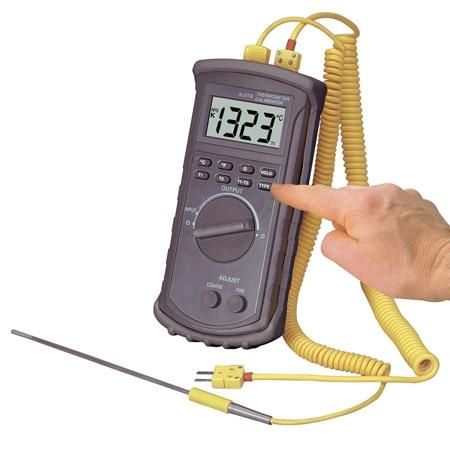

Omega CL3512A

Name: Omega CL3512A
Brand: Omega
SKU: CS3158041
Price: 448.10 USD
Availability: OutOfStock

SKU: CS3158041MPN: CL3512A

Rugged J,K,T, E Thermocouple Calibrator and Thermometer

$448.10

Unit

Available on backorder

Quantity

remove

add

Documents

Product Details

8-Point, NIST-Traceable Calibration Certificate
Large 31/2 Digit Display
Type J/K/T/E TC Calibrator and Thermometer
Range -220 to 1372°C (-364 to 1999°F)

Attributes

Width	92 mm
Height	195 mm
Length	53 mm
Weight	250 g
Accuracy	± 0.1 %
Polarity	Automatic, positive implied, negative polarity indication
Series ID	CL3512A-Series
Weight Note	Approximately 250 g (9 oz)
Auto-Ranging	0.1° to 1°
Battery life	100 hr
Display Type	LCD
Sampling Rate	1 Hz (1 update/second)
Supply Voltage	9 Vdc
Accuracy Detail	± (0.1% rdg + 1°C) Accuracy is specified for operating temperatures from 18 to 28°C (64 to 82°F), for 1 year, not including thermocouple error; ± (0.1% rdg + 1°C) range -60 to 1372°C [± (0.1% rdg + 2°F) range -76 to 1999°F] ± (0.1% rdg + 2°C) range -60 to -220°C[± (0.1% rdg + 4°F) range -76 to -364°F]
Resolution Note	0.1 (to 199.9) or 1°
Resolution, Max	1 °C
Resolution, Min	0 °C
Auto-Ranging Note	0.1° to 1° resolution above 199.9 (°C or °F)
Country of Origin	Taiwan
Display Type Note	3 1⁄2 digit LCD with a maximum reading of 1999. Overrange: (-OL) is displayed. Zero: Automatic
Thermocouple Type	J, K, T, E
Battery Indication	A low battery indication is displayed when the battery voltage drops below the operating level
Type of RTD Signal	None
Simulation Accuracy	Measurement Accuracy + 1°C
Relative Humidity, Max	0.8
Relative Humidity, Min	0%
Storage Temperature Note	-20 to 60°C (-4 to 140°F), 0 to 80% RH with battery removed from meter
Storage Temperature, Max	60 °C
Storage Temperature, Min	-20 °C
Operating Temperature Note	0 to 50°C (32 to 122°F) @ <80% RH
Operating Temperature, Max	50 °C
Operating Temperature, Min	0 °C
