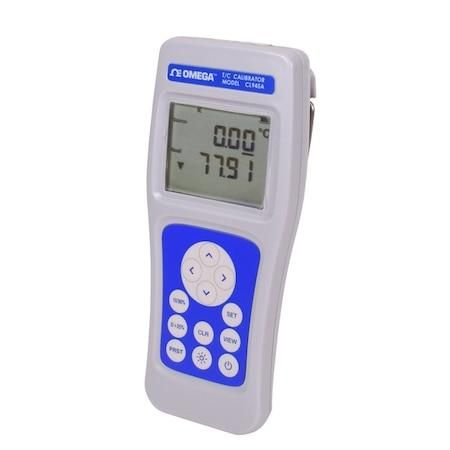

Omega CL940A

Name: Omega CL940A
Brand: Omega
SKU: CS5040530
Price: 1989.86 USD
Availability: OutOfStock

SKU: CS5040530MPN: CL940A

500 Hour Thermocouple Calibrator with 0.01° Resolution

$1,989.86

Unit

Available on backorder

Quantity

remove

add

Product Details

Handheld Thermocouple Calibrator with ±5 µV accuracy
Resolution: 0.01°
10x Battery Life
Simultaneous Source / Measure

Attributes

Width	84 mm
Height	28 mm
Keypad	12 Switches
Length	193 mm
Weight	362.9 g
Auto Off	20 min
Series ID	CL940-Series
Sanitation	NSF, ANSI/3-1 14159-2
Statistics	Average, Maximum, Minimum, Range, Standard Deviation
Weight Note	362.9g (including batteries)
Battery life	500 hr
Display Type	Backlit LCD
EMC Standard	Class 2, EN 61326, MIL-PRF-28800F
ESD Standard	IEC 61326 Criterion B
Reading Rate	3/sec
Auto Off Note	20 minute no key pressed Auto Off. Feature can be disabled
Input Current	± 50 nA
Supply Voltage	4.5 Vdc
Millivolt Range	-15 to 85 mV
Resolution Note	0.01°C UP TO 999.99°C AND 0.1°C ≥ 1000°C
Resolution, Max	999.99 °C
Resolution, Min	0.01 °C
Country of Origin	United States
Display Backlight	Four (4) LED Backlight with 30-second timeout
Display Type Note	5-DIGIT AUTO-RESOLUTION (0.1/0.01) WITH BACKLIGHT AND FUNCTION ANNUNCIATORS Two (2) rows of Five (5) digit LCD with separate minus sign, decimal indicators, with offset, thermocouple types KJTEBNRSGCDPLU, battery, source, read, temperature units, voltage units, percent, trend, PRST (0-19), MIN, MAX, AVG, RNG, STDEV, Transfer, symbols: Fast Ramp, Slow Ramp, Step, Bluetooth
Electrical Safety	IEC-61010
Reading Rate Note	3/sec. for Readings and TREND indicators
Thermocouple Type	J, K, T, E
Battery Indication	4 stage battery charge indication
Display Resolution	0.01°
Weight (CJC error)	12.8 oz (including batteries)
Cold Junction Error	± 0.15 °C
Common Mode Voltage	42 V
Low Resistance Load	Less than 5µV change in output with a 100KΩ resistance
Additional Features 1	Read and Source Signals
Electrical Connection	Miniature Female Thermocouple Connector
Operating Environment	Altitude: 0 to 4600 m ; 0 to 15,092 ft(CJC Error) Vibration: Random 10 – 500 Hz; 0.03 g2/Hz(CJC Error) Shock: 30g Half Sine Drop: 4 Drops from 1 m to Concrete
Dimensions (CJC error)	7.6 L x 3.3 W x 1.1 H in
Relative Humidity Note	<10 °C (50 °F): Non-condensing 10 to 30 °C (50 to 86 °F): 5 to 95% RH 30 to 40 °C (86 to 104 °F): 5 to 85% RH 40°C to 55°C (104 to 131 °F): 5 to 60% RH
Relative Humidity, Max	0.95
Relative Humidity, Min	5%
Display Measuring Units	°C, °F, mV
Internal Preset Storage	20 user defined presets available
Temperature Coefficient	For specification variances due to ambient operating temperature, see the Expanded Instrument Uncertainty charts in Appendix B of this manual. For ambient operating temperatures not shown in Appendix B, accuracies shall be interpolated linearly.
Common Mode Voltage Note	42 V peak to earth; 1 V p-p between T1 and T2
Probe Offset Uncertainty	Resolution 0.1 °C/°F
Storage Temperature Note	Storage Temperature(CJC error): -59.8 to 159.8°F
Storage Temperature, Max	71 °C
Storage Temperature, Min	-51 °C
Operating Temperature Note	Operating Temperature(CJC error): -4 to 131°F
Operating Temperature, Max	55 °C
Operating Temperature, Min	-20 °C
Display Resolution (CJC error)	0.1°
Power Cycle Configuration Retention	Instrument retains: Sensor Type, Temperature Unit Offset Values, Presets, Statistics, Open Lead detection status, 0%/100% span settings, and operating mode
Common Mode Voltage (CJC error), Max	1 V
