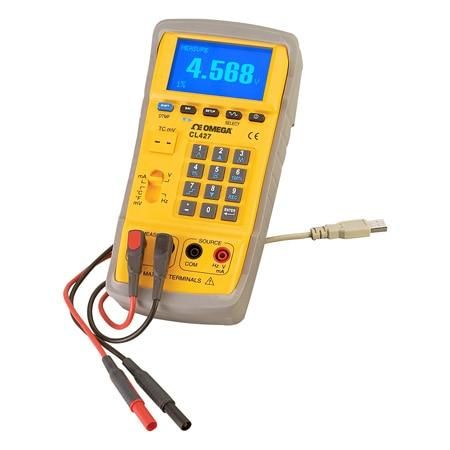

Omega CL427

Name: Omega CL427
Brand: Omega
SKU: CS5795602
Price: 2195.45 USD
Availability: OutOfStock

SKU: CS5795602MPN: CL427

Multifunction Calibrator \& Arbitrary Function Generator

$2,195.45

Unit

Available on backorder

Quantity

remove

add

Documents

Sources Milliamps, Millivolts, Volts, Sine Wave, Square Wave, Triangular Wave, and 11 Thermocouple Types
13-Point Calibration Certificate
Measures Current (mA), Voltage (mV, V) and Temperature (у or ц)
Short Circuit Protection

Width	98.7 mm
Height	56 mm
Length	214 mm
Weight	650 g
Series ID	CL427-Calibrator
Input Type	Milliamp, Millivolt, Volts, Sine Wave, Square Wave, Triangular Wave, Thermocouple
Measuring Range	Type K : -200 to -150 °C, -150 to 0 °C, 0 to 1000 °C ,1000 to 1370 °C, Type J : -200 to -150 °C, -150 to 0 °C, 0 to 1050 °C, Type E : -200 to -150 °C, -150 to 0 °C, 0 to 850 °C, Type T : -200 to -150 °C, -150 to 0 °C, 0 to 400 °C, Type R/S : 0 to 500 °C, 500 to 1760 °C, Type N : -200 to 0 °C, 0 to 1300 °C, Type L : -200 to 0 °C, 0 to 900 °C, Type U : -200 to 0 °C, 0 to 600 °C, Type B : 600 to 800 °C, 800 to 1000 °C, 1000 to 1820 °C, Type C : 0 to 1800 °C, 1800 to 2310 °C, mV : -10 to 70 mV
Country of Origin	Taiwan
Relative Humidity	Storage : 75% RH,Operating : 85% RH
Supply Power Note	AC 110V, 60 Hz input; or AC 220V, 50/60 Hz input; DC 15V/0.5 A output
Thermocouple Type	J, K,T, E, N, R, S, U, B, C, L
Storage Temperature, Max	60 °C
Storage Temperature, Min	-20 °C
Operating Temperature, Max	50 °C
Operating Temperature, Min	0 °C
