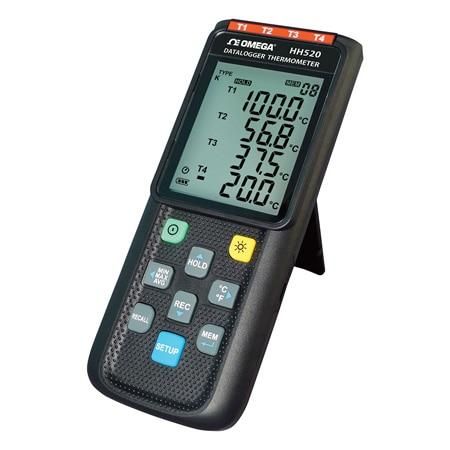

Omega HH520
SKU: CS5796740MPN: HH520
Four-Channel J,KT,E Thermocouple Data Logger with USB
Product Details
- Measures Types J, K, T, E Thermocouples
- Large Backlit Display Shows All Channels
- USB Interface -- PC Software Included
- High Accuracy, Fast Response
Attributes
| Width | 75 mm |
| Height | 187 mm |
| Length | 29 mm |
| Weight | 290 g |
| Series ID | HH520-TC-Logger |
| Weight Note | 290 g (10.2 oz) |
| Battery life | 100 hr |
| Display Type | Backlit LCD |
| Sampling Rate | 2.5 Hz (2.5 updates/second) |
| Data Interface | USB |
| Supply Voltage | 6 Vdc |
| Measurement Type | Thermocouple |
| Country of Origin | Taiwan |
| Number of Channels | 4 |
| Temperature Accuracy | ± 0.1% |
| Additional Features 1 | Data Logging Capability |
| Software Compatibility | Windows® XP/Vista/⅞/10 |
| Temperature Resolution | 0.1 °C |
| Temperature Coefficient | 0.01% of reading + 0.05°C per °C(<18 or >28°C) |
| Input Protection Voltage | 30 Vrms |
| Storage Temperature Note | -20 to 60°C(-4 to 140 °F); 10 to 75% RH |
| Storage Temperature, Max | 60 °C |
| Storage Temperature, Min | -20 °C |
| Temperature Accuracy Note | (Does Not Include Thermocouple Sensor Error):± (0.1% rdg + 0.7°C)/± (0.1% rdg + 1.4°F) between 18 to 28°C (64 to 82°F); ± (0.4% rdg + 0.7°C)/± (0.4%rdg + 1.4°F) below -100°C (-148°F) |
| Operating Temperature Note | 0 to 50°C (32 to 122°F);10 to 90% RH non-condensing |
| Temperature Resolution Note | 0.1°C <600°C (0.1°F <1000°F); 1.0°C ≥ 600°C (1.0°F ≥ 1000°F) |
Specifications
| SKU | CS5796740 |
|---|---|
| MPN | HH520 |
