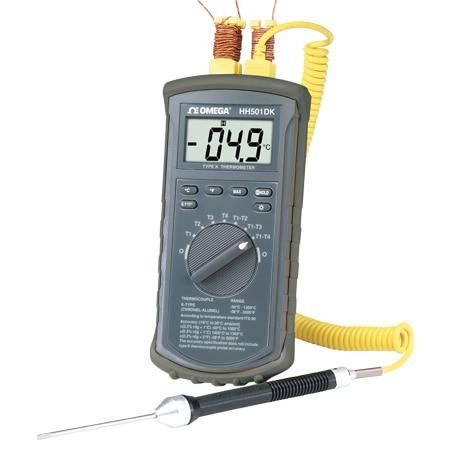

Omega HH501DK
SKU: CS5800024MPN: HH501DK
4 Channel K Type Thermocouple Meter NIST Traceable
Product Details
- 4 Inputs with Differential Temperature Measurement
- 3 1 /2 Digital Display with Backlighting
- Measures K Thermocouples in °F or °C
- Read HOLD, MAX Function
Attributes
| Width | 92 mm |
| Height | 195 mm |
| Weight | 250 g |
| Diameter | 53 mm |
| Polarity | Automatic, positive implied, negative polarity indication |
| Overrange | (OL) or (-OL) is displayed |
| Series ID | HH501DK-Series |
| Weight Note | Approximately 250 g (9 oz) including battery |
| Display Type | 3.5 Digit LCD |
| Sampling Rate | 2.5 Hz (2.5 updates/second) |
| Supply Voltage | 9 Vdc |
| Country of Origin | Taiwan |
| Display Type Note | 3 1⁄2 digit liquid crystal display (LCD) with maximum reading of 1999 Default Display Output : Zero : Automatic |
| Thermocouple Type | K |
| Battery Indication | “+ -” is displayed when battery voltage drops below operating level |
| Number of Channels | 4 |
| Temperature Accuracy | ± 0.3% |
| Additional Features 1 | Read HOLD,MAX Function |
| Electrical Connection | Sub-D Male Miniature Connector |
| Relative Humidity, Max | 0.8 |
| Relative Humidity, Min | 0% |
| Temperature Resolution | 0.1 °C |
| Temperature Sensor Type | Thermocouple |
| Storage Temperature Note | -20 to 60°C (-4 to140°F), 0 to 80% RH with battery removed from meter |
| Storage Temperature, Max | 60 °C |
| Storage Temperature, Min | -20 °C |
| Temperature Accuracy Note | ± (0.3% rdg + 1°C) -50 to 1000°C; ± (0.5% rdg + 1°C) 1000 to 1300°C; ± (0.3% rdg + 2°F) -58 to 1999°F Stated accuracy : 23°C ± 5°C <75% relative humidity (accuracy specification does not include |
| Operating Temperature Note | 0 to 50°C (32 to 122°F)@ <70% RH |
| Operating Temperature, Max | 50 °C |
| Operating Temperature, Min | 0 °C |
| Measuring Temperature Range, Max | 1300 °C |
| Measuring Temperature Range, Min | -50 °C |
Specifications
| SKU | CS5800024 |
|---|---|
| MPN | HH501DK |
