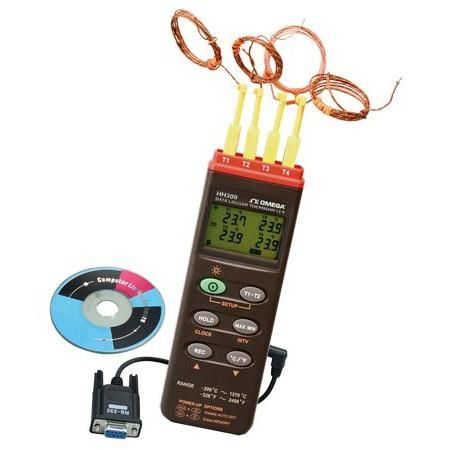

Omega HH309A
SKU: CS1475592MPN: HH309A
Four-Channel K Thermocouple Data Logger with USB and RS232
Product Details
- 4 Type K Thermocouple Inputs
- Displays 4 Channels Simultaneously or 2 Channels with Delta
- Data Logger with 16,000 Records per Channel
- USB and RS232 Interface with Windows Software
Attributes
| Width | 64 mm |
| Height | 184 mm |
| Length | 34 mm |
| Weight | 250 g |
| Series ID | HH309A-TC-Logger |
| Display Type | LCD |
| Sampling Rate | 3 Hz (3 updates/second) |
| Data Interface | USB, RS232 |
| Supply Voltage | 9 Vdc |
| Country of Origin | Taiwan |
| Supply Power Type | Battery |
| Thermocouple Type | K |
| Number of Channels | 4 |
| Temperature Accuracy | ± 0.2% rdg +1 °C |
| Additional Features 1 | Data Logging Capability |
| Relative Humidity, Max | 0.8 |
| Relative Humidity, Min | 0% |
| Temperature Resolution | 0.1 °C |
| Temperature Sensor Type | Thermocouple |
| Storage Temperature, Max | 60 °C |
| Storage Temperature, Min | -20 °C |
| Temperature Accuracy Note | (± 0.2% rdg +1°C) |
| Temperature Resolution Note | 0.1° between -200 and 200°C/F, else 1°C/F |
| Measuring Temperature Range, Max | 1370 °C |
| Measuring Temperature Range, Min | -200 °C |
Specifications
| SKU | CS1475592 |
|---|---|
| MPN | HH309A |
