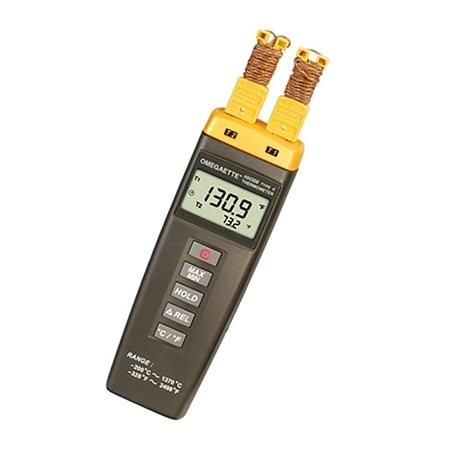

Omega HH308
SKU: CS140947MPN: HH308
2 Channel Mini K Type Thermocouple Meter with 0.3% Accuracy
Product Details
- Wide Measurement Range, -200 to 1370°C
- (-328 to 2498°F)
- Auto Ranging
- Auto Power Off
Attributes
| Width | 54 mm |
| Height | 164 mm |
| Length | 38 mm |
| Weight | 200 g |
| Series ID | HH307-308 |
| Weight Note | Approx 200 g (7 oz) |
| Battery life | 120 hr |
| Display Type | 3.5 Digit LCD |
| Supply Voltage | 9 Vdc |
| Country of Origin | Taiwan |
| Supply Power Note | 9V (included), MN 1604 |
| Thermocouple Type | K |
| Number of Channels | 2 |
| Temperature Accuracy | ± 0.7°C + 0.1% rdg |
| Additional Features 1 | MIN/MAX/REL/HOLD Functions , Auto Power-Off |
| Electrical Connection | Miniature Male Thermocouple Connector |
| Temperature Resolution | 0.1 °C |
| Temperature Sensor Type | Thermocouple |
| Storage Temperature Note | -10 to 60°C (14 to 140°F) <80% RH |
| Storage Temperature, Max | 60 °C |
| Storage Temperature, Min | -10 °C |
| Temperature Accuracy Note | HH303: 0.1% rdg + 0.7°C (1.4°F) HH308: 0.3% rdg + 1°C (2°F) |
| Operating Temperature Note | 0 to 40°C (32 to 104°F) <80% RH |
| Temperature Resolution Note | 0.1°C/0.1°F up to 599.9°C/999.9°F |
| Input Protection Voltage Note | 60 Vdc or 24 Vrms AC maximum |
| Measuring Temperature Range, Max | 1370 °C |
| Measuring Temperature Range, Min | -200 °C |
Specifications
| SKU | CS140947 |
|---|---|
| MPN | HH308 |
