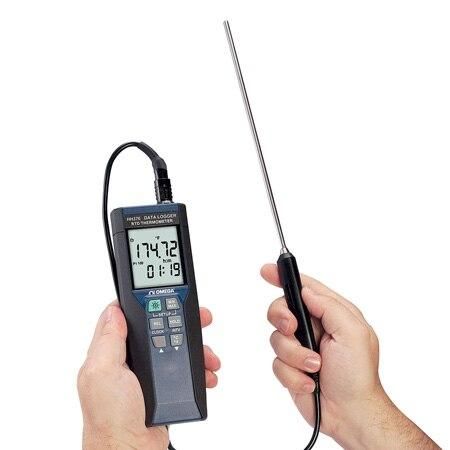

Omega HH376
SKU: CS5797019MPN: HH376
1 Channel High Precision Handheld RTD with Probe Datalogger
Product Details
- High Accuracy with 0.01C/F Resolution
- Large Backlit Dual LCD Display
- MAX/MIN/HOLD Function
- 16,000 Record Data Logger
Attributes
| Width | 65 mm |
| Height | 36 mm |
| Length | 185 mm |
| Weight | 360 g |
| Series ID | HH376-Series |
| Form factor | Handheld |
| Samples,Max | 16000 |
| Battery life | 100 hr |
| Cable Length | 1500 mm |
| Display Type | LCD |
| Probe Length | 230 mm |
| Sampling Rate | 2 Hz (2 updates/second) |
| Data Interface | USB, RS232 |
| Probe Diameter | 5 mm |
| Measurement Type | Temperature |
| Country of Origin | Taiwan |
| Display Type Note | 5-digit LCD |
| Supply Power Type | AC, Battery |
| Sampling Rate Note | 2 times per second |
| Temperature Accuracy | ± 0.1 °C |
| Additional Features 1 | MIN/MAX/AVG/REL/HOLD Functions , Auto Power-Off |
| Storage Humidity, Max | 0.8 |
| Storage Humidity, Min | 0 |
| Number of Measurements | 1 |
| Relative Humidity, Max | 0.8 |
| Relative Humidity, Min | 0% |
| Temperature Resolution | 0.01 °C |
| Temperature Sensor Type | 100 Ω RTD |
| Storage Temperature Note | -10 to 60°C(14 to 140°F); 0 to 80% RH; altitude up to 2000 meters |
| Storage Temperature, Max | 60 °C |
| Storage Temperature, Min | -10 °C |
| Temperature Accuracy Note | 100 to 400°C ± (0.05% reading + 0.1°C) [-148 to 752°F ± (0.05% reading + 0.2°F)] |
| Operating Temperature, Max | 50 °C |
| Operating Temperature, Min | 0 °C |
| Temperature Measurement, Max | 400 °C |
| Temperature Measurement, Min | -100 °C |
| Temperature Sensor Type Note | Pt100 (4-wire) |
Specifications
| SKU | CS5797019 |
|---|---|
| MPN | HH376 |
