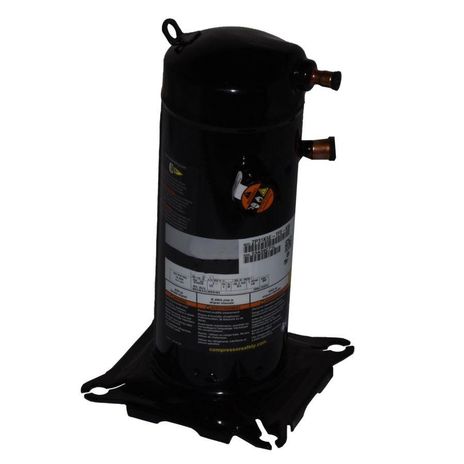

Carrier ZP31K5E-TFE-830

Name: Carrier ZP31K5E-TFE-830
Brand: Carrier
SKU: CS5794110
Price: 1574.44 USD
Availability: OutOfStock

SKU: CS5794110MPN: ZP31K5E-TFE-830

COMP ZP31K5E-TFE-830

Product Details

COMP ZP31K5E-TFE-830

Amps	4.2
Phase	Three
Voltage	575 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	31,100
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A; R-410B
Displacement	1.80 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	69
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	458 lbs./hr.; 520 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 16.02”
Rated Load Amps (RLA)	4.2
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F
Suction Line Size (OD)	¾”
Evaporating Temperature	45°F
Locked Rotor Amps (LRA)	36.5
Oil Charge Initial (oz.)	21
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
