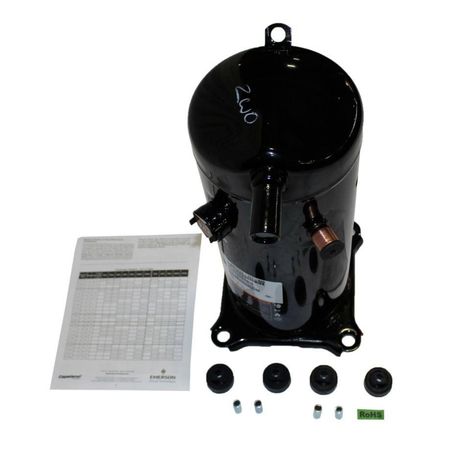

Carrier ZP67KCE-TFE-830

Name: Carrier ZP67KCE-TFE-830
Brand: Carrier
SKU: CS5791118
Availability: OutOfStock

SKU: CS5791118MPN: ZP67KCE-TFE-830

COMP ZP67KCE-TFE-830

Product Details

COMP ZP67KCE-TFE-830

Amps	8.6
Phase	Three
Voltage	575 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	67,500
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A; R-410B
Displacement	3.84 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	75
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	1000 lbs./hr.; 1020 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 18.16”
Rated Load Amps (RLA)	8.6
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F (18.33°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F (7.22°C)
Locked Rotor Amps (LRA)	54
Oil Charge Initial (oz.)	60
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
