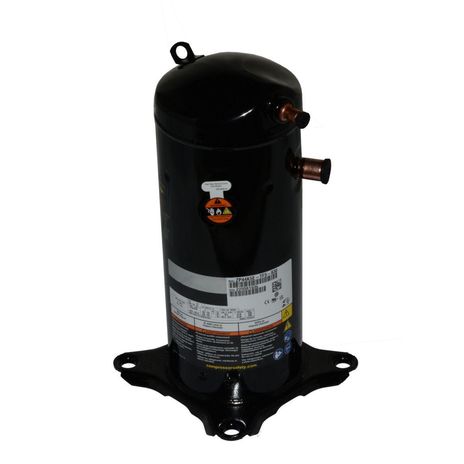

Carrier ZP44K5E-TF5-830
SKU: CS5467011MPN: ZP44K5E-TF5-830
Compressor 42,000 BTUH
Contact us for pricing and availability
Product Details
ZP44K5E-TF5-830 is an official OEM Compressor for Carrier HVAC equipment
Attributes
| Amps | 16.1 |
| Phase | Three |
| Voltage | 200-220/200-230 VAC |
| Oil Type | Polyolester (POE) |
| UL Listed | Yes |
| BTU Output | 44,500 |
| Protection | Internal Inherent Protection |
| Cycle/Hertz | 50/60 Hz |
| Refrigerant | R-410A; R-410B |
| Displacement | 2.56 (in^3/Rev) |
| Compressor Type | Scroll |
| Sound Level (dBA) | 71 |
| Compressor Housing | Hermetic |
| Liquid Temperature | 85°F to 115°F (29.44°C to 46.11°C) |
| Mass Flow (lbs/hr) | 656 lbs./hr.; 737 lbs./hr. |
| Mounting Dimensions | 7.5” x 7.5” x 17.17” |
| Rated Load Amps (RLA) | 16.1 |
| Substantial Commodity | Steel |
| Condensing Temperature | 100°F to 130°F (37.78°C to 54.44°C) |
| Return Gas Temperature | 70°F (21.11°C) |
| Suction Line Size (OD) | ⅞” |
| Evaporating Temperature | 50F |
| Locked Rotor Amps (LRA) | 98 |
| Oil Charge Initial (oz.) | 42 |
| Discharge Connection Type | Stub |
| Suction Line Fitting Type | Stub |
| Discharge Connection Size (OD) | ½” |
Specifications
| SKU | CS5467011 |
|---|---|
| MPN | ZP44K5E-TF5-830 |
