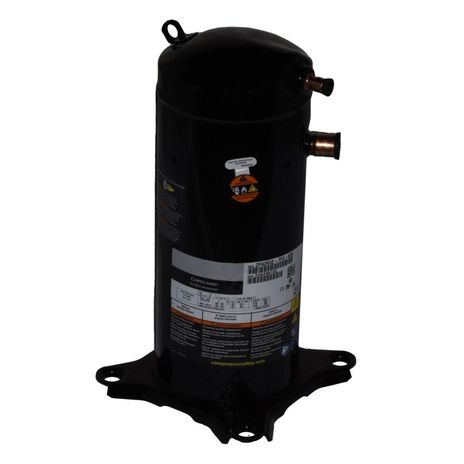

Carrier ZP42K5E-TF5-830

Name: Carrier ZP42K5E-TF5-830
Brand: Carrier
SKU: CS5467006
Price: 1580.79 USD
Availability: OutOfStock

SKU: CS5467006MPN: ZP42K5E-TF5-830

42,000 BTUH Copeland Scroll™ Compressor For R-410A Refrigerant

Product Details

ZP42K5E-TF5-830 is an official OEM 42,000 BTUH Copeland Scroll™ Compressor For R-410A Refrigerant for Carrier HVAC equipment

Amps	15.3
Phase	Three
Voltage	200-220/200-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	42,000
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-410A; R-410B
Displacement	2.43 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	71
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	622 lbs./hr.; 705 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	15.6
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	70°F (21.11°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	50°F (10°C)
Locked Rotor Amps (LRA)	83.1
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
