Carrier ZR42K5E-TF5-830

Name: Carrier ZR42K5E-TF5-830
Brand: Carrier
SKU: CS4231125
Price: 2744.63 USD
Availability: OutOfStock

SKU: CS4231125MPN: ZR42K5E-TF5-830Alternate Part #: CAR-ZR42K5E-TF5-830

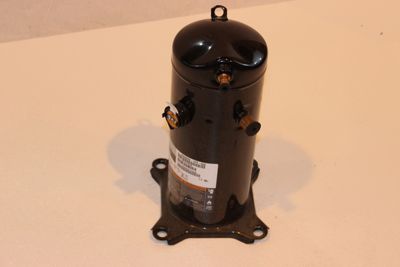

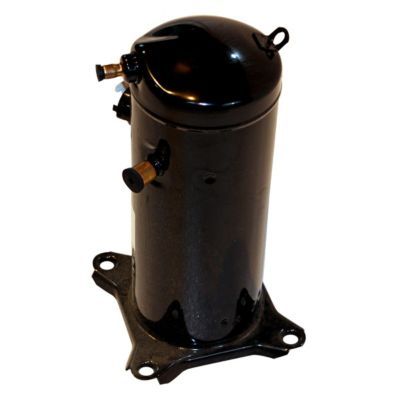

Factory Authorized Parts™ - ZR42K5E-TF5-830 Copeland Scroll™ Compressor 42,000 BTUH

$2,744.63

Unit

Available on backorder

Quantity

remove

add

Documents

Carrier ZP154KCE TED 950, ZP182KCE TED 950, ZP20K6E PFV 830, ZP31K6E PFV 830, ZP51K5E-TFD-830, ZR18K5E PFV 830, ZR42K5E TF5 830, ZR68KCE TFE 930 Data Sheet
Carrier, Copeland ZP16K5E-PFV-830, ZP51K5E-TFD-830, ZR16M3E TWD 961, ZR18K5E PFV 830, ZR32K5E PFV 830, ZR38K5E PFV 830, ZR42K5E TF5 830, ZR57K3E TF5 950, ZR68KCE TF5 950, ZR68KCE TFE 930 Installation Instructions

Product Details

Factory Authorized Parts™ - ZR42K5E-TF5-830 is a Copeland Scroll™ Compressor that is Three phase with a voltage of 208/230 VAC. The compressor is designed to work in units that are compatible with a BTU Output of 42,200 and use R-22 refrigerant.

Attributes

Amps	14.3
Phase	Three
Voltage	200-220/200-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	42,200
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	3.45 in^3/Rev
Compressor Type	Scroll
Sound Level (dBA)	73
Compressor Housing	Hermetic
Liquid Temperature	85°F (29.44°C); 115°F (46.11°C)
Mass Flow (lbs/hr)	618 lbs./hr.; 716 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	12.8
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F
Locked Rotor Amps (LRA)	93
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
