Carrier ZR44K5E-TF5-830

Name: Carrier ZR44K5E-TF5-830
Brand: Carrier
SKU: CS3055704
Price: 2958.67 USD
Availability: OutOfStock

SKU: CS3055704MPN: ZR44K5E-TF5-830Alternate Part #: CAR-ZR44K5E-TF5-830

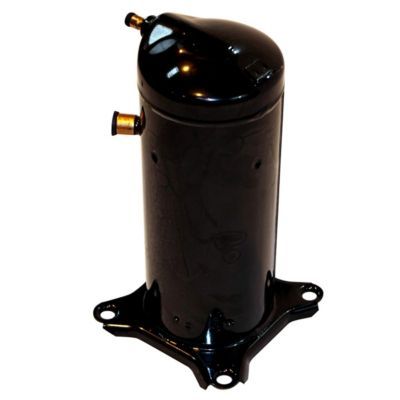

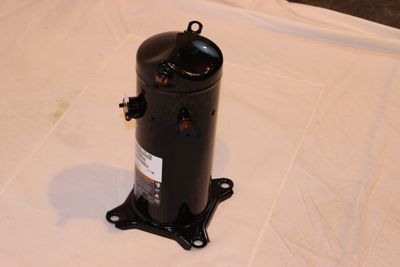

Factory Authorized Parts™ - ZR44K5E-TF5-830 Copeland Scroll™ Compressor 44,000 BTUH

$2,958.67

Unit

Available on backorder

Quantity

remove

add

Product Details

Factory Authorized Parts™ - ZR44K5E-TF5-830 is a Copeland Scroll™ Compressor that is Three phase with a voltage of 208/230 VAC. The compressor is designed to work in units that are compatible with a BTU Output of 44,000 and use R-22 refrigerant.

Attributes

Amps	14.3
Phase	Three
Voltage	200-220/200-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	44,000
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	3.56 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	73
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	614 lbs./hr.; 701 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	14.3
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	70°F (21.11°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	50°F (10°C)
Locked Rotor Amps (LRA)	98
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
