Carrier ZR54K5E-TF5-830

Name: Carrier ZR54K5E-TF5-830
Brand: Carrier
SKU: CS4231133
Price: 3426.32 USD
Availability: OutOfStock

SKU: CS4231133MPN: ZR54K5E-TF5-830Alternate Part #: CAR-ZR54K5E-TF5-830UPC/EAN: 822529609584

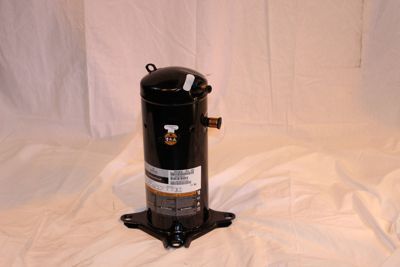

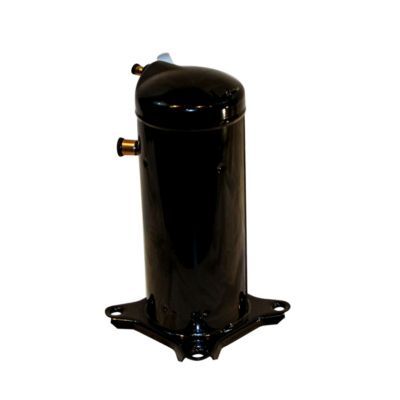

Factory Authorized Parts™ - ZR54K5E-TF5-830 Copeland Scroll™ Compressor 54,000 BTUH

$3,426.32

Unit

Available on backorder

Quantity

remove

add

Product Details

Factory Authorized Parts™ - ZR54K5E-TF5-830 is a Copeland Scroll™ Compressor that is Three phase with a voltage of 208/230 VAC. The compressor is designed to work in units that are compatible with a BTU Output of 53,500 and use R-22 refrigerant.

Attributes

Amps	17.1
Phase	Three
Voltage	200-220/200-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	53,500
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	4.4 in^3/Rev
Compressor Type	Scroll
Sound Level (dBA)	73
Compressor Housing	Hermetic
Liquid Temperature	85°F (29.44°C); 115°F (46.11°C)
Mass Flow (lbs/hr)	785 lbs./hr.; 889 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	17.1
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	70°F (21.11°C)
Suction Line Size (OD)	⅞”
Evaporating Temperature	45°F
Locked Rotor Amps (LRA)	114
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
