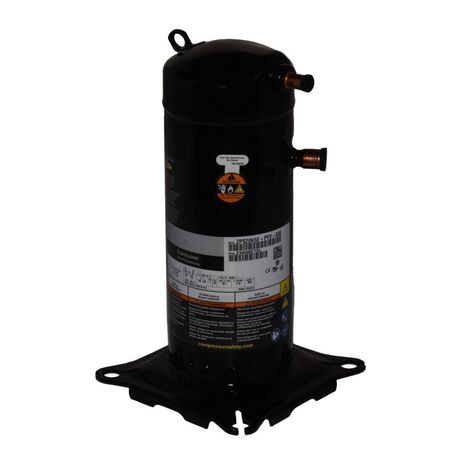

Carrier ZPS20K5E-PFV-830

Name: Carrier ZPS20K5E-PFV-830
Brand: Carrier
SKU: CS5467042
Price: 1444.60 USD
Availability: OutOfStock

SKU: CS5467042MPN: ZPS20K5E-PFV-830

20K to 25.1K BTUH Copeland Scroll™ Ultratech™ Two-Stage Compressor For R-410A Refrigerant

Product Details

ZPS20K5E-PFV-830 is an official OEM 20K to 25.1K BTUH Copeland Scroll™ Ultratech™ Two-Stage Compressor For R-410A Refrigerant for Carrier HVAC equipment

Attributes

Amps	7.4
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	20,200
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A; R-410B
Displacement	1.21 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	66
Compressor Housing	Hermetic
Liquid Temperature	100°F to 115°F (37.78°C to 46.11°C)
Mass Flow (lbs/hr)	298 lbs./hr.; 333 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 16.03”
Rated Load Amps (RLA)	11.7
Substantial Commodity	Steel
Condensing Temperature	115°F to 130°F (46.11°C to 54.44°C)
Return Gas Temperature	70°F (21.11°C)
Suction Line Size (OD)	¾”
Evaporating Temperature	45°F
Locked Rotor Amps (LRA)	58.3
Oil Charge Initial (oz.)	25
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
