Carrier ZR42K5E-TFD-830

Name: Carrier ZR42K5E-TFD-830
Brand: Carrier
SKU: CS5467047
Price: 2830.14 USD
Availability: OutOfStock

SKU: CS5467047MPN: ZR42K5E-TFD-830

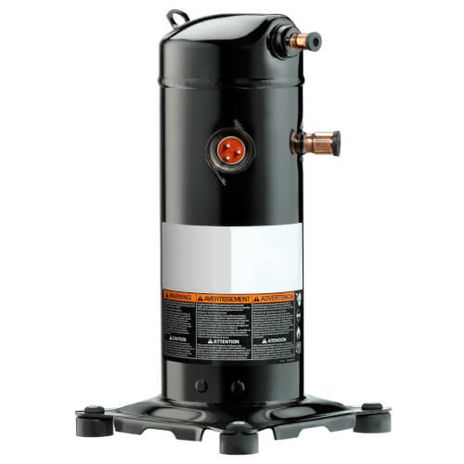

42,000 BTUh Copeland Scroll Compressor R-22

$2,830.14

Unit

Available on backorder

Quantity

remove

add

Product Details

ZR42K5E-TFD-830 is an official OEM 42,000 BTUh Copeland Scroll Compressor R-22 for Carrier HVAC equipment

Amps	6.4
Phase	Three
Voltage	380-420/460 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	42,200
Protection	Internal Inherent Protection
Cycle/Hertz	50/60 Hz
Refrigerant	R-134a; R-22; R-407C
Displacement	3.45 in^3/Rev
Compressor Type	Scroll
Sound Level (dBA)	73
Compressor Housing	Hermetic
Liquid Temperature	85°F (29.44°C); 115°F (46.11°C)
Mass Flow (lbs/hr)	618 lbs./hr.; 716 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 17.17”
Rated Load Amps (RLA)	5.8
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F
Suction Line Size (OD)	⅞”
Evaporating Temperature	50°F (10°C)
Locked Rotor Amps (LRA)	48
Oil Charge Initial (oz.)	42
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
